Microinverters

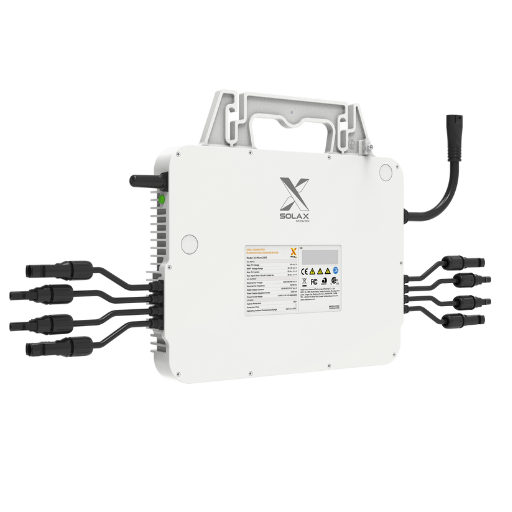

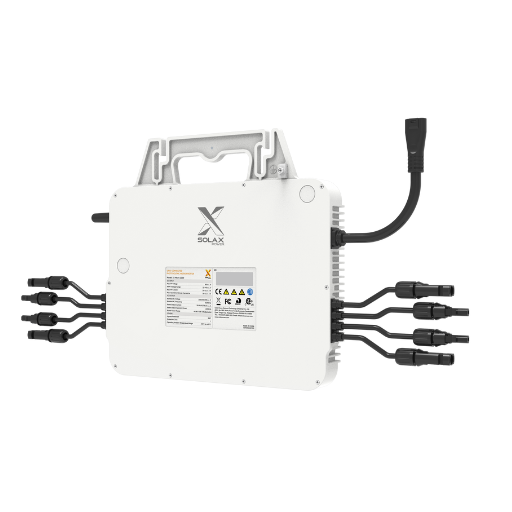

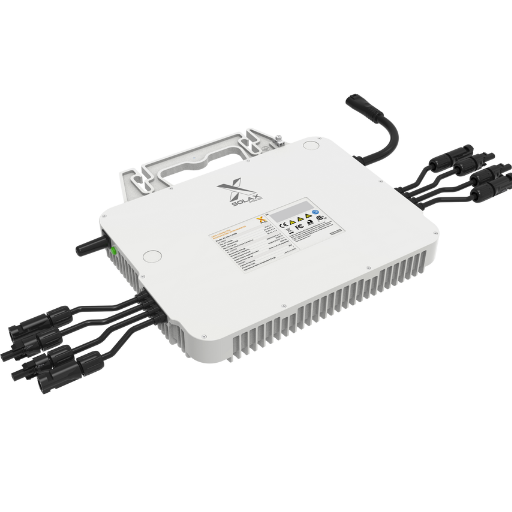

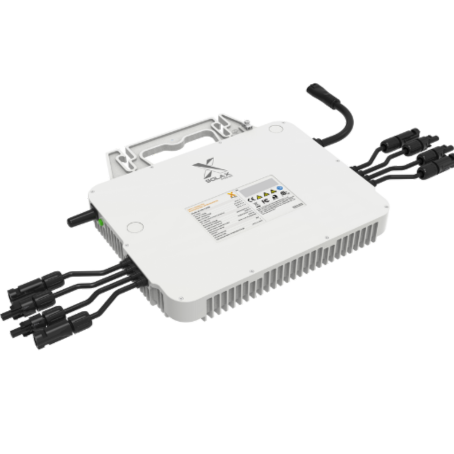

X1-Micro 4 in 1

  • 1300W/ 1500W / 1600W / 1800W / 2000W / 2200W

The SolaX X1 Micro 4-in-1 integrates 4 MPPT trackers for optimized solar harvesting, supporting high-power modules up to 700W. Enhanced Arc Fault Circuit Interruption (AFCI) ensures safety, while the built-in Wi-Fi/4G module enables real-time monitoring via the SolaX Cloud App. Its plug-and-play design and IP67 rating simplify installation and maintenance in diverse environments.

Product Advantage

With a maximum output of 2400VA and up to 19.5A DC input current, the X1-Micro 4 in 1 microinverter delivers industry-leading energy conversion performance. Its advanced 4 MPPT channels  ensure superior power optimization across multiple panel orientations.

Contact Us

Safety and Compatibility

Safety Features. Includes a safety protection relay, Reactive Power Control, and Rapid Shutdown Function, ensuring safe operation.

System Compatibility. Supports micro-grid and AC coupling solutions with existing storage systems. Compatible with SolaX Hybrid systems and supports the integration of a single-phase microinverter into a three-phase power grid system.


High Power Output and Multiple MPPT Channels

  • High Power Output. The X1-Micro 4in1 series microinverters deliver an impressive output power of up to 2200VA, suitable for high-power PV modules.

  • Multiple MPPT Channels. Equipped with 4 independent MPPT channels, supporting up to 20A DC input current, ensuring compatibility with the latest and previous generation high-power PV modules, allowing substantial input current and output power capabilities.


Built-in High-Reliability Communication Module

  • Built-in industrial-grade Wi-Fi module for high reliability.

  • Monitoring and Control. Integrated with the SolaX Cloud, enabling easy monitoring and control through web and mobile apps.


Easy Installation and Maintenance

  • Compact and Lightweight. Designed for easy installation and maintenance with a small size and lightweight structure.

  • High Protection Rating. IP67 protection class ensures durability and reliability in various environmental conditions.



Product Parameters

  • X1-Micro 2400
  • X1-Micro 2200
  • X1-Micro 2000
  • X1-Micro 1800
  • X1-Micro 1600
  • X1-Micro 1500
  • X1-Micro 1300
  • X1-Micro 2400
    • DC INPUT
      Commonly used module power per input500~750+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power2400 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2200
    • DC INPUT
      Commonly used module power per input450 ~700+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power2200 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2000
    • DC INPUT
      Commonly used module power per input400~670+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power2000 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1800
    • DC INPUT
      Commonly used module power per input400~600+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1800 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1600
    • DC INPUT
      Commonly used module power per input360~600+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1600 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1500
    • DC INPUT
      Commonly used module power per input320~540+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1500 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1300
    • DC INPUT
      Commonly used module power per input300~ 505+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1300 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling
