Residential Batteries

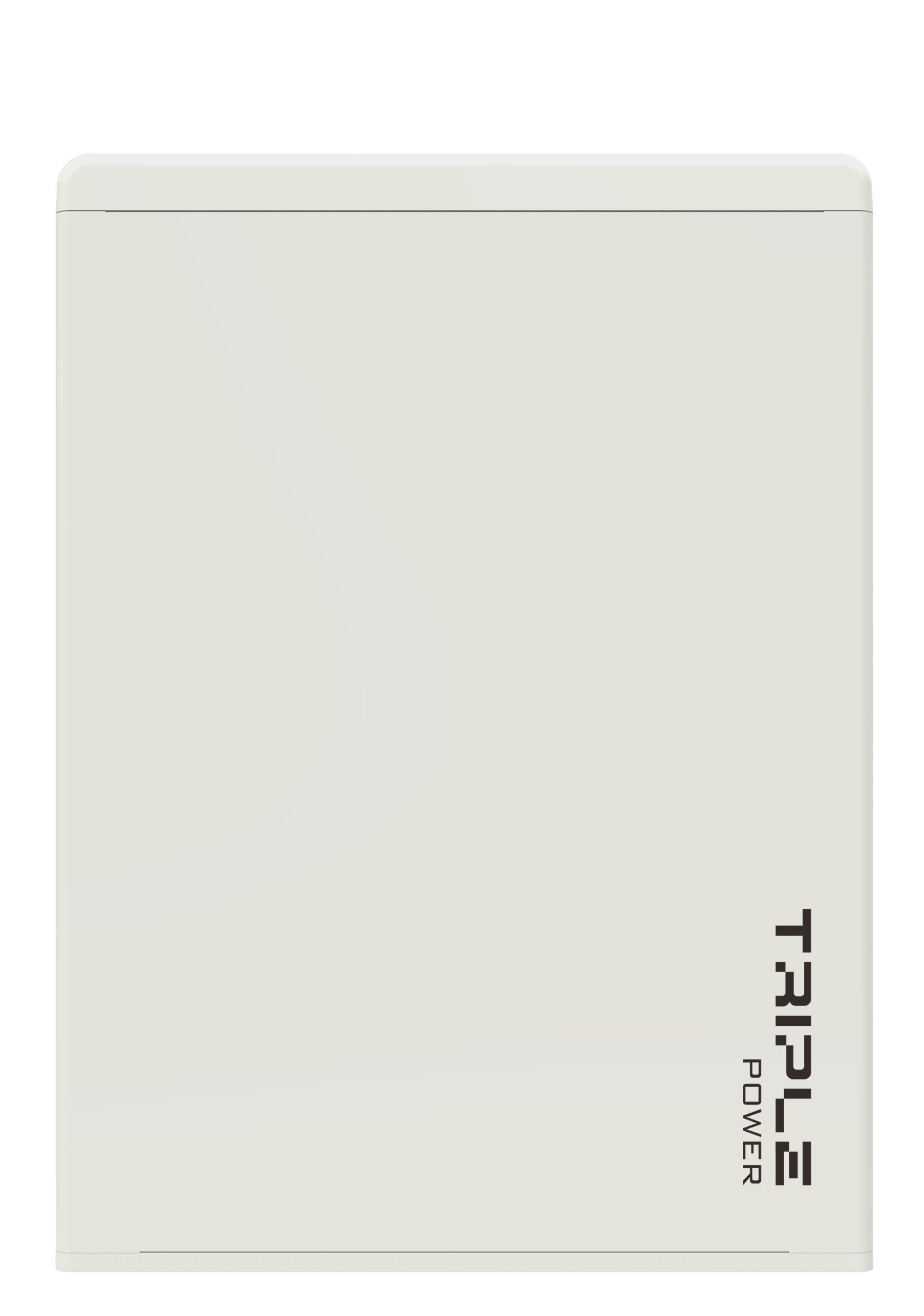

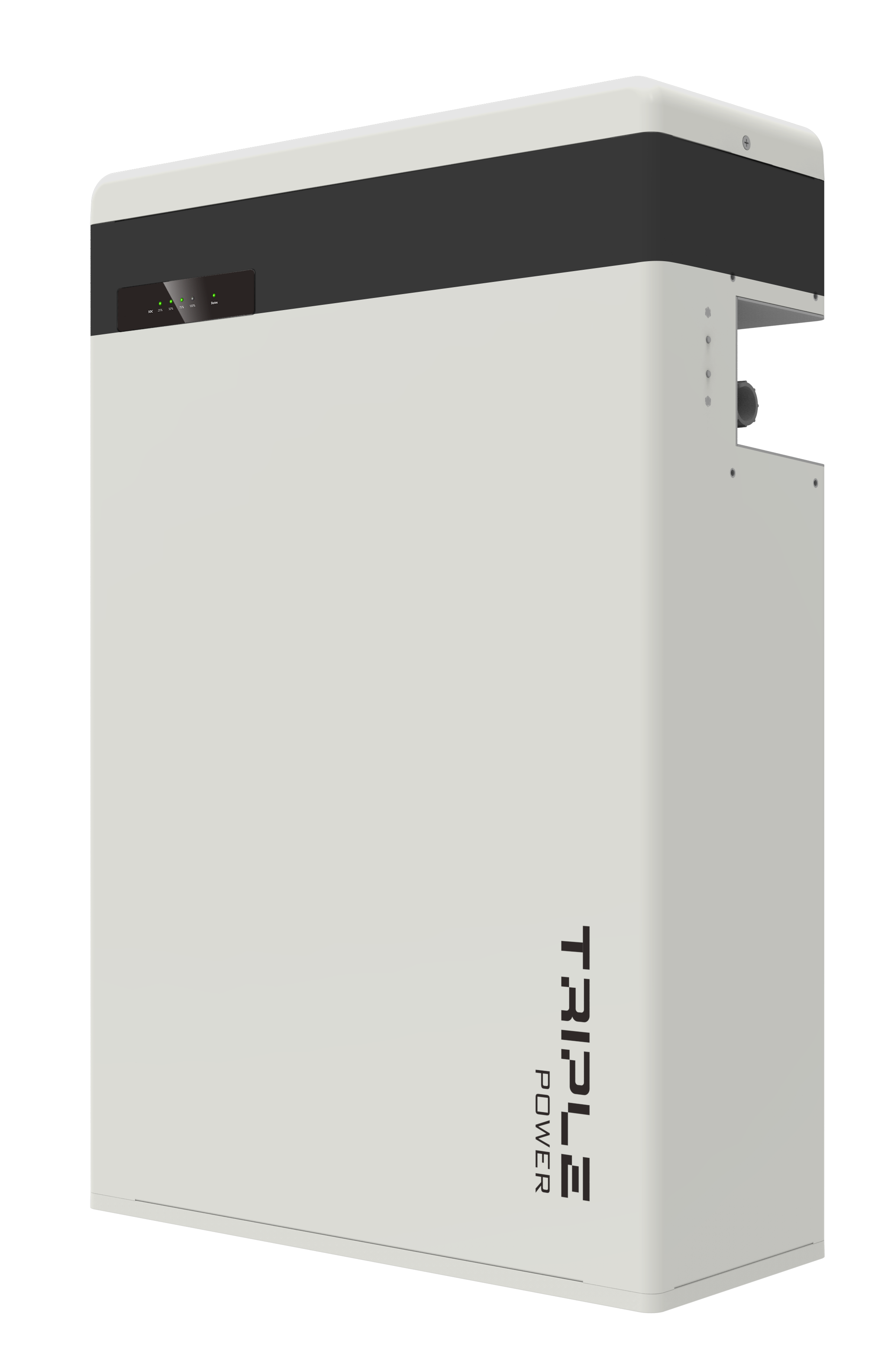

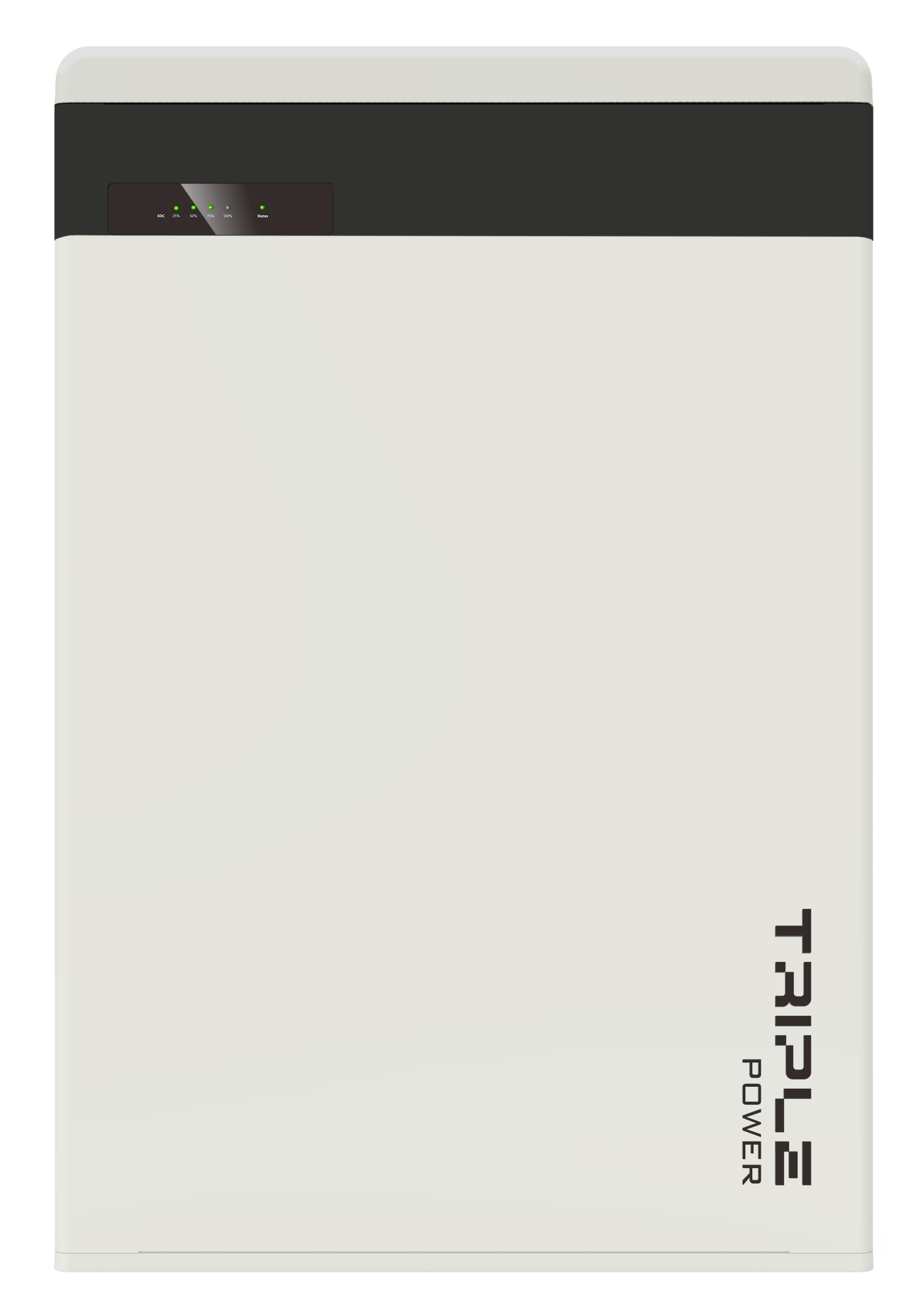

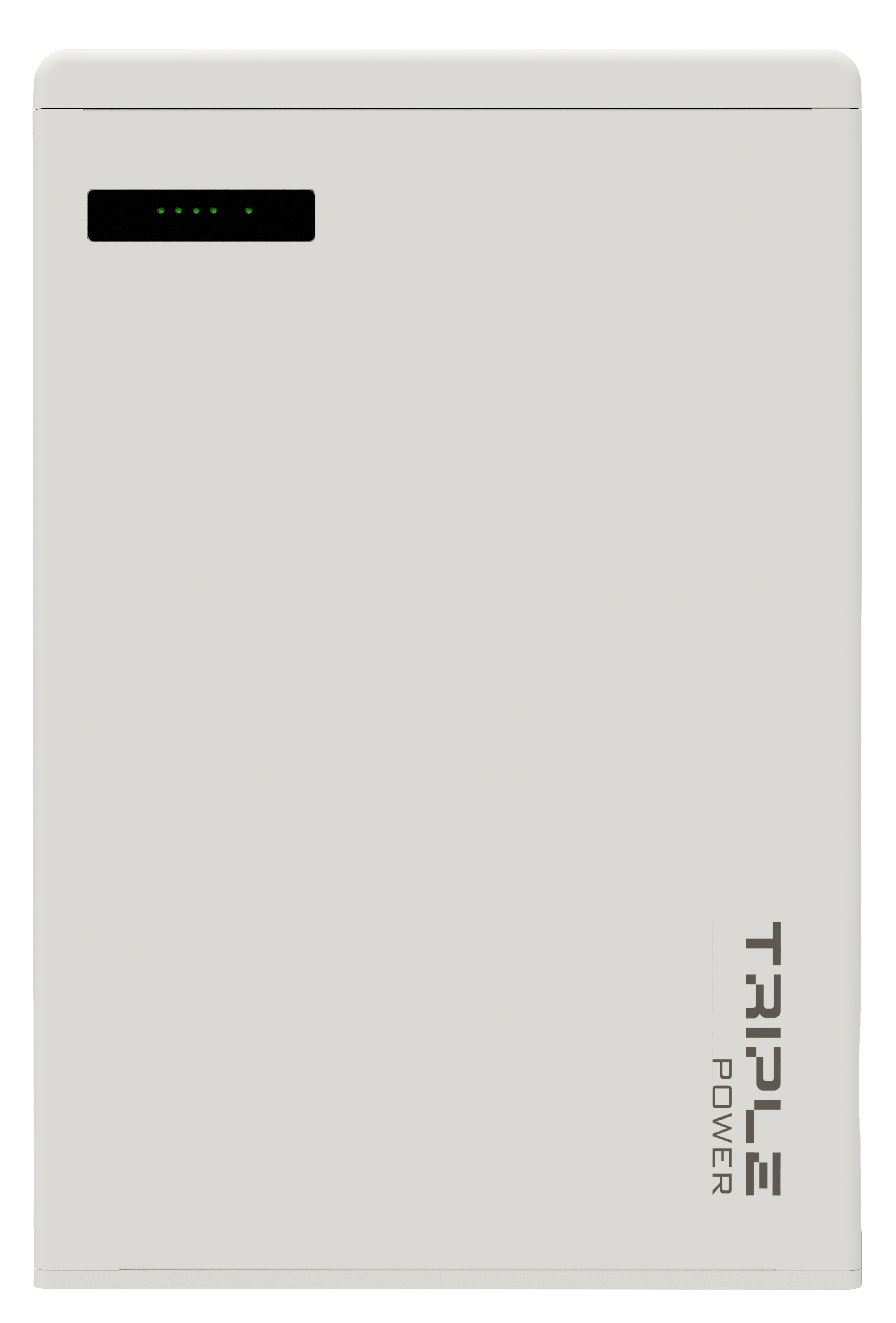

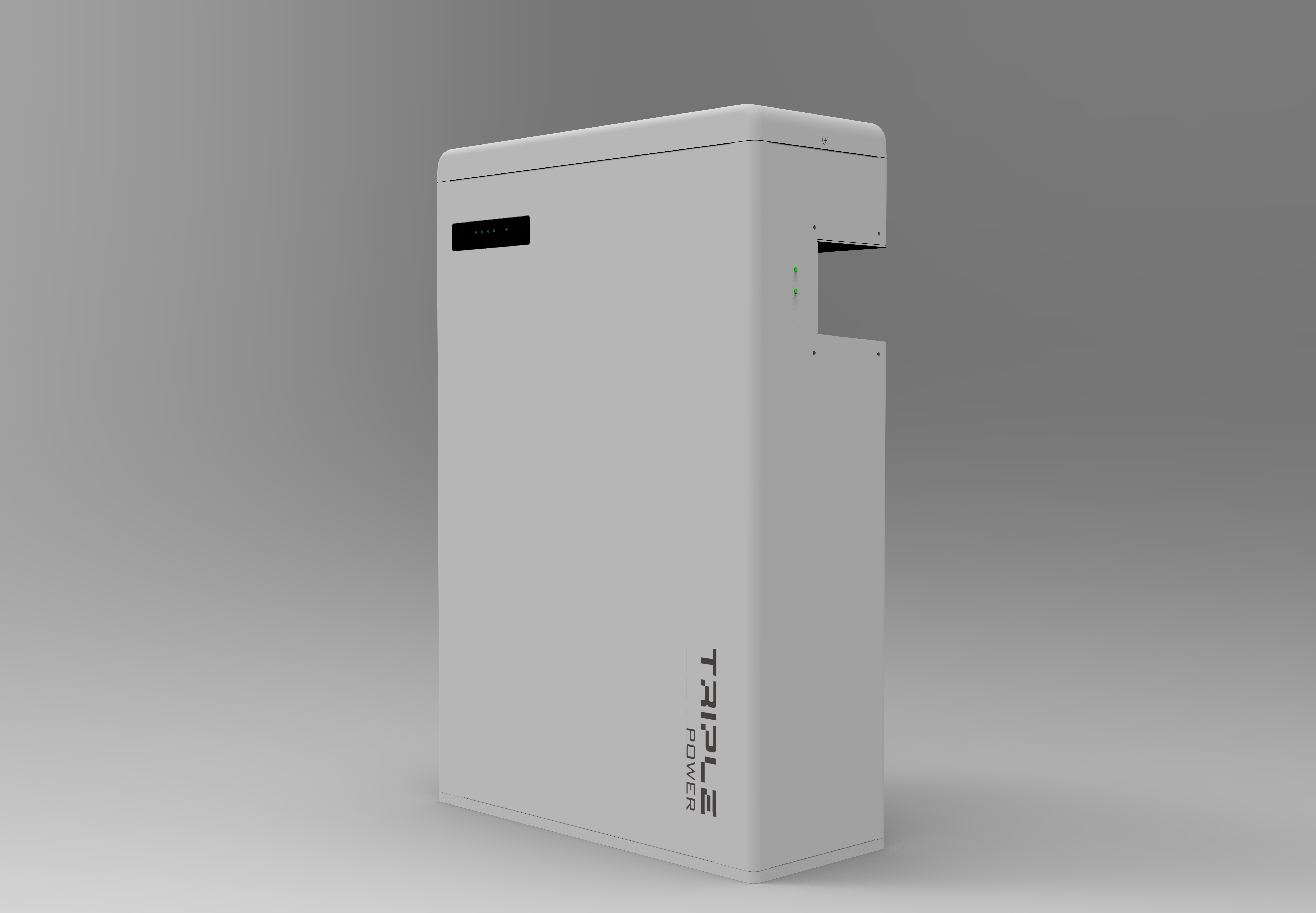

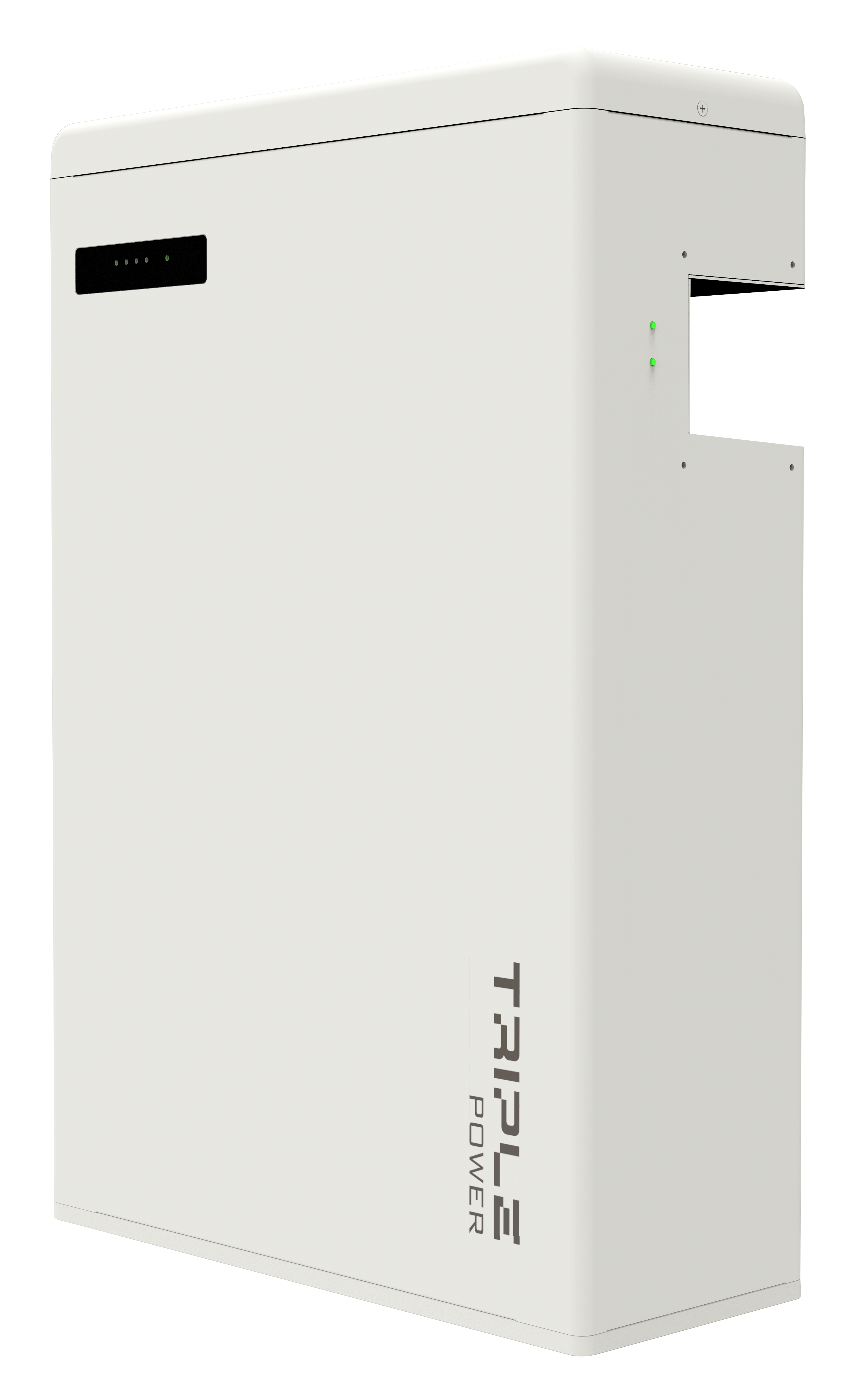

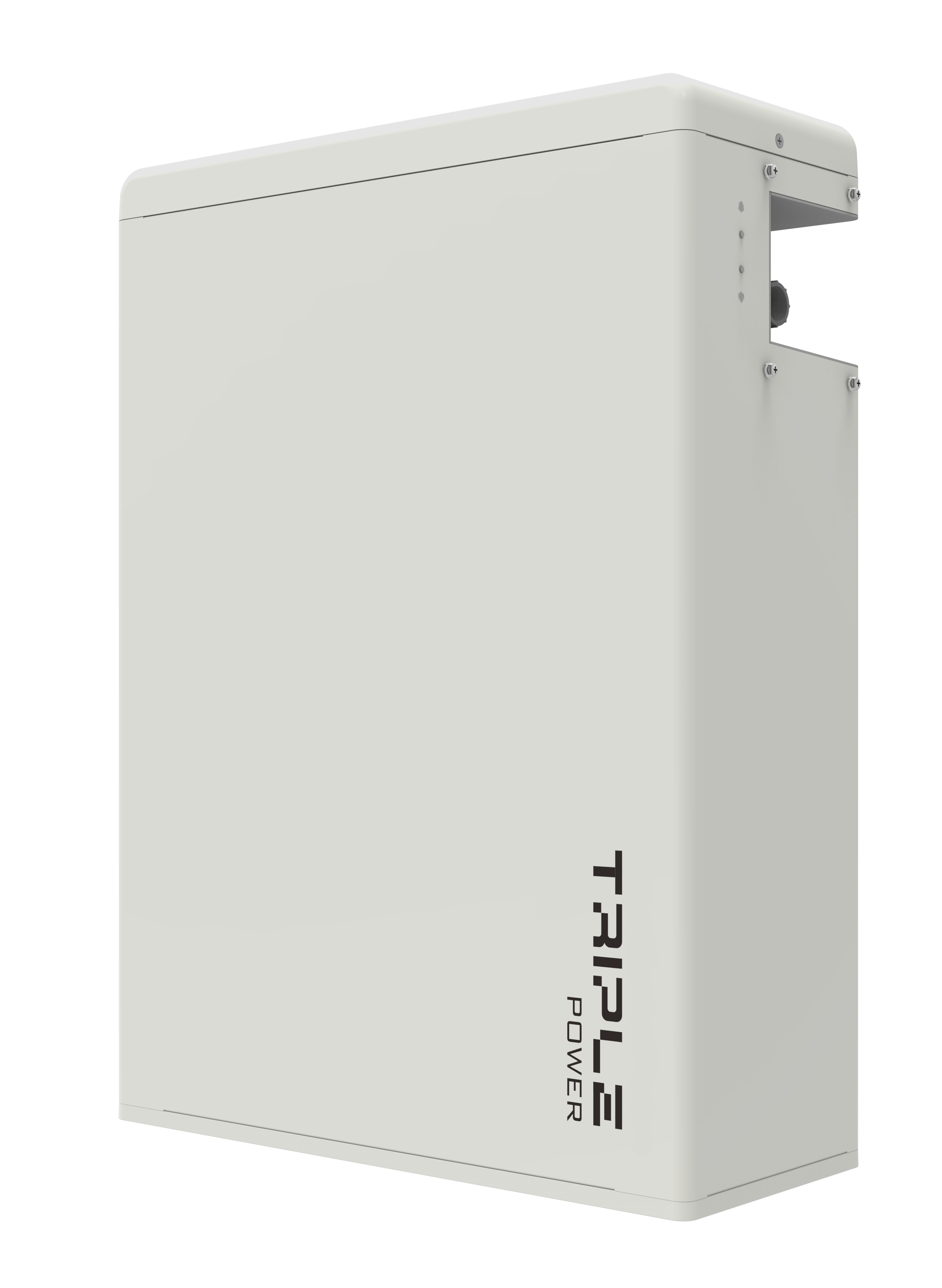

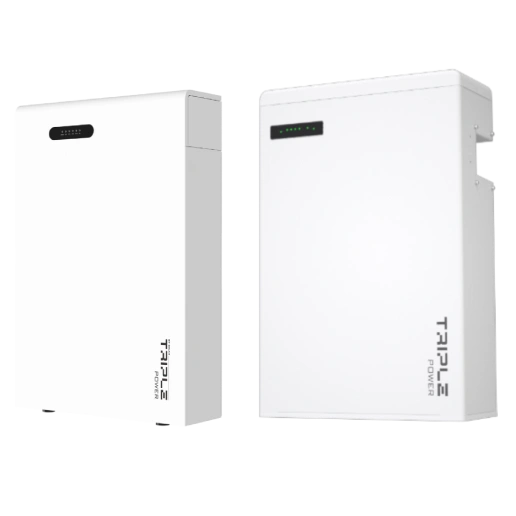

T58

5.8-34.6kWh

The T58 offers a flexible installation process with the option to mount the system on the floor or wall, providing convenience for different spaces. Its compact design ensures quick installation and reduced self-consumption, making it an ideal energy storage solution.

Watch Video
Data Download

Product Advantage

The T58 delivers impressive depth of discharge (DOD) of up to 90% and a cycle life exceeding 6000 cycles. With an IP66 protection rating, it guarantees reliable operation in harsh conditions, while remaining eco-friendly with no toxic heavy metals or caustic materials.

High Performance

Max expandable to 6 units with 34.6kWh capacity for single cluster: cover more customer usage scenarios* (Inverters with two battery ports: Max expandable to 12 units with 69.1kWh capacity)
95% Depth of Discharge (DOD)：Delivers more usable energy over its lifetime
Cycle life> 6000 cycles: Ultra-long lifespan, ensuring consistent performance and long-term reliability
Flexible Heating: The T58-V3 features flexible two-level battery heating, designed to meet diverse user needs for optional performance

Assured Reliability

Aerosol fire suppression for precise protection
lP66 Ingress protection
No toxic heavy metals or caustic materials
LFP battery cell & high-performance processors

Smart Management

Remote fault diagnosis, upgrade and maintenance：Rapid issue identification

Flexible Adaptability

Floor or wall mounting optional: fits multiple installation scenarios

Product Parameters

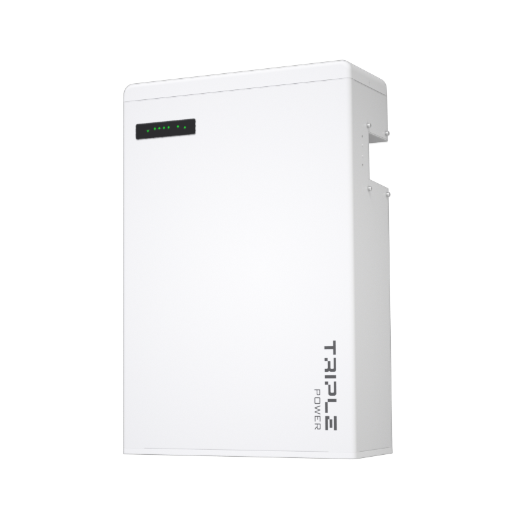

T58 V2

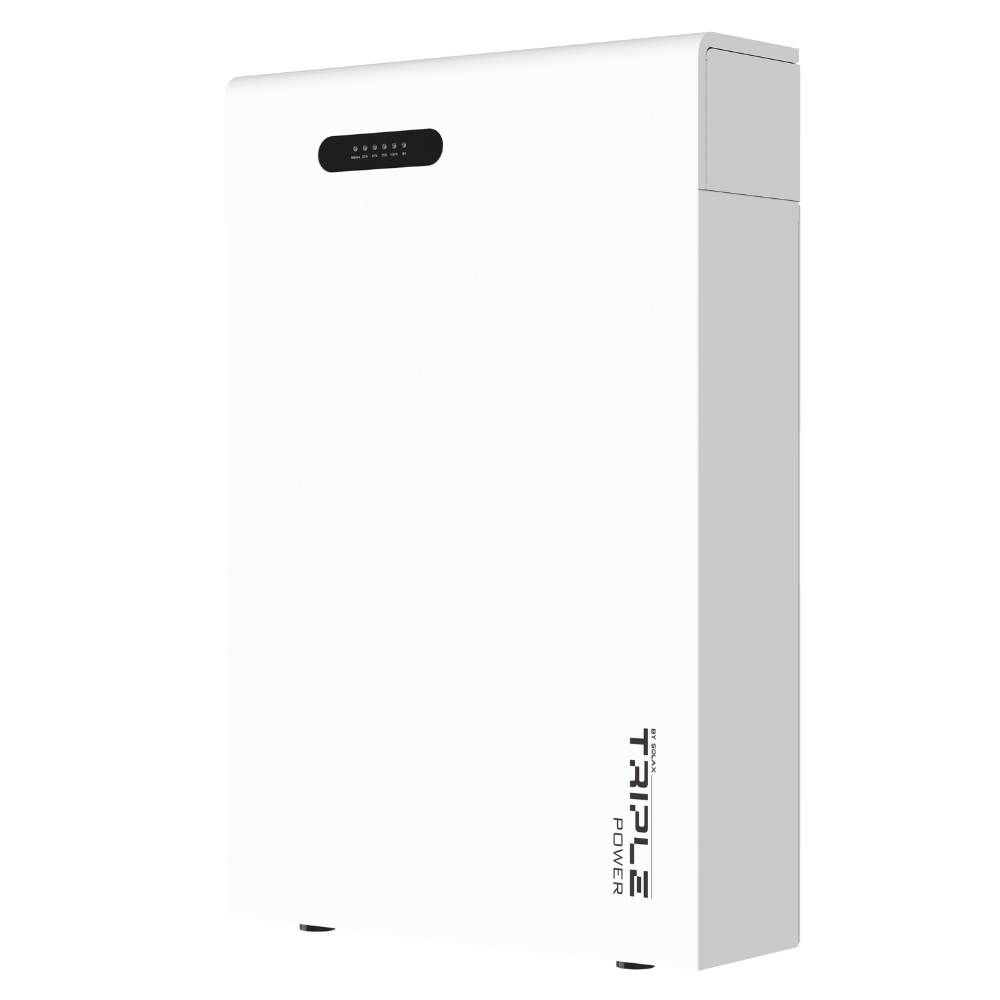

T58 V3

T-BAT H 5.8 / T-BAT H 5.8 V2
T-BAT H 11.5 / T-BAT H 11.5 V2
T-BAT H 17.3 / T-BAT H 17.3 V2
T-BAT H 23 / T-BAT H 23 V2

T-BAT H 5.8 / T-BAT H 5.8 V2
- GENERAL

  Nominal voltage 115.2 V
  Total capacity 5.8 kWh
  Standard power 2.8 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm
  Weigh
  72.2 kg
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9
T-BAT H 11.5 / T-BAT H 11.5 V2
- GENERAL

  Nominal voltage 230.4 V
  Total capacity 11.5 kWh
  Standard power 5.7 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm +
  474 × 193 × 647 mm
  Weigh
  72.2 kg + 68.5 kg
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9
T-BAT H 17.3 / T-BAT H 17.3 V2
- GENERAL

  Nominal voltage 345.6 V
  Total capacity 17.3 kWh
  Standard power 8.6 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm +
  (474 × 193 × 647 mm) × 2
  Weigh
  72.2 kg + 68.5 kg × 2
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9
T-BAT H 23 / T-BAT H 23 V2
- GENERAL

  Nominal voltage 460.8 V
  Total capacity 23.0 kWh
  Standard power 11.5 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm +
  (474 × 193 × 647 mm) × 3
  Weigh
  72.2 kg + 68.5 kg × 3
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9

T-BAT H 5.8 V3/ T-BAT H 5.8H V3
T-BAT H 11.5 V3/ T-BAT H 11.5H V3
T-BAT H 17.3 V3/ T-BAT H 17.3H V3
T-BAT H 23.0 V3/ T-BAT H 23.0H V3
T-BAT H 28.8 V3/ T-BAT H 28.8H V3
T-BAT H 34.6 V3/ T-BAT H 34.6H V3

T-BAT H 5.8 V3/ T-BAT H 5.8H V3
- GENERAL

  Nominal voltage 115.2 V
  Nominal energy
  5.8 kWh
  Dimensions (W x H x D)
  BATTERY MODULE (BMS+PACK)
  474 x 715 x 150 mm
  Weight
  BATTERY MODULE (BMS+PACK)
  61.5 (±1) kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current
  35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection
  IP66
  Hazardous materials classification
  Class 9
T-BAT H 11.5 V3/ T-BAT H 11.5H V3
- GENERAL

  Nominal voltage 230.4 V
  Nominal energy
  11.5 kWh
  Dimensions (W x H x D)
  BATTERY MODULE (BMS+PACK)
  474 x 715 x 150 mm
  Weight
  BATTERY MODULE (BMS+PACK)
  61.5 (±1) kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current
  35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection
  IP66
  Hazardous materials classification
  Class 9
T-BAT H 17.3 V3/ T-BAT H 17.3H V3
- GENERAL

  Nominal voltage 345.6 V
  Nominal energy
  17.3 kWh
  Dimensions (W x H x D)
  BATTERY MODULE (BMS+PACK)
  474 x 715 x 150 mm
  Weight
  BATTERY MODULE (BMS+PACK)
  61.5 (±1) kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current
  35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection
  IP66
  Hazardous materials classification
  Class 9
T-BAT H 23.0 V3/ T-BAT H 23.0H V3
- GENERAL

  Nominal voltage 460.8 V
  Nominal energy
  23.0 kWh
  Dimensions (W x H x D)
  BATTERY MODULE (BMS+PACK)
  474 x 715 x 150 mm
  Weight
  BATTERY MODULE (BMS+PACK)
  61.5 (±1) kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current
  35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection
  IP66
  Hazardous materials classification
  Class 9
T-BAT H 28.8 V3/ T-BAT H 28.8H V3
- GENERAL

  Nominal voltage 576 V
  Nominal energy
  28.8 kWh
  Dimensions (W x H x D)
  BATTERY MODULE (BMS+PACK)
  474 x 715 x 150 mm
  Weight
  BATTERY MODULE (BMS+PACK)
  61.5 (±1) kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current
  35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection
  IP66
  Hazardous materials classification
  Class 9
T-BAT H 34.6 V3/ T-BAT H 34.6H V3
- GENERAL

  Nominal voltage 691.2 V
  Nominal energy
  34.6 kWh
  Dimensions (W x H x D)
  BATTERY MODULE (BMS+PACK)
  474 x 715 x 150 mm
  Weight
  BATTERY MODULE (BMS+PACK)
  61.5 (±1) kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current
  35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection
  IP66
  Hazardous materials classification
  Class 9
