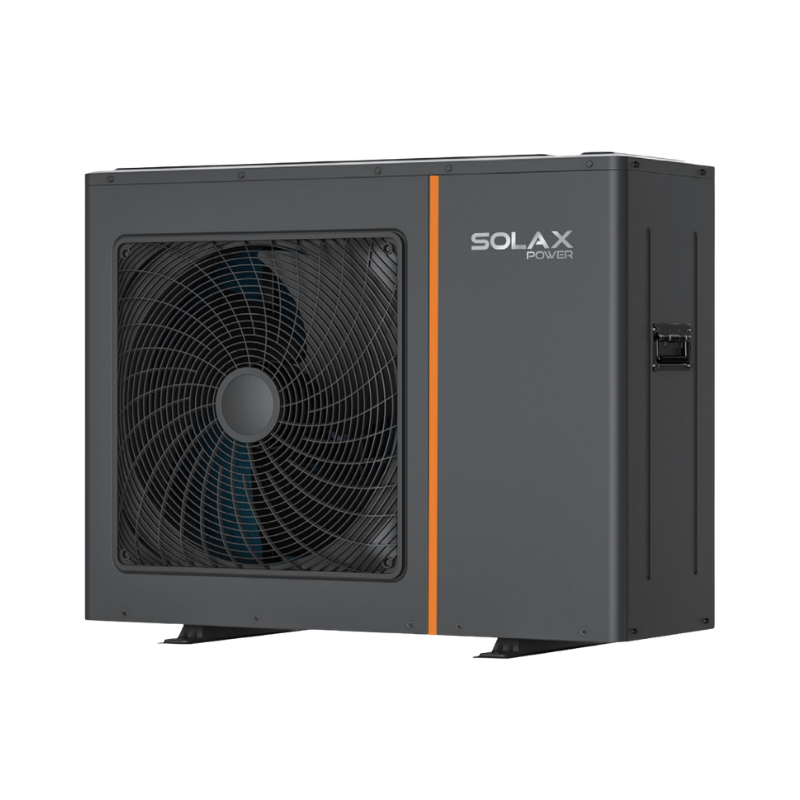

Air to Water Heat Pump
Alture series
This air to water heat pump alture series is engineered to set new benchmarks in sustainable climate control, seamlessly integrating with photovoltaic systems and energy storage to maximize the use of green energy. Utilizing R290 natural refrigerant, it delivers powerful performance while ensuring a low-carbon footprint and exceptionally quiet operation. Designed for ultimate flexibility, the unit combines heating, cooling, and domestic hot water production in one compact system, making it an ideal solution for everything from passive houses and apartments to the renovation of existing building.
Product Advantage
Achieving an industry-leading SCOP level of A+++, the unit delivers a maximum leaving water temperature of 80°C, ensuring high efficiency even in demanding conditions. It is available in three capacity sizes ranging from 4 to 6 kW to suit various building types. The system features a brushless DC motor for stepless speed regulation, supports highly interoperable connectivity with SG Ready and Modbus TCP/RTU protocols, and offers smart app control for remote monitoring and OTA updates.
High Performance
SCOP level:A+++
Maximum leaving water temperature of 80°C
Integrated with PV and ESS to maximize green energy self-consumption
Flexibility
Available in 3 capacity sizes (4 to 6 kW), suitable for passivehouse, apartment, holiday home. renovation of existingbuildings
Heating + Cooling + Domestic Hot Water (DHW)
Compact design for easy installation in limited spaces
Ultimate Comfort
R290 natural refrigerant, low GWP and a low-carbon lifestyle
Extremely quiet operation with low noise level
Intelligent Control
Smart App control supports remote monitoring, operation, and OTA updates
Highly interoperable, SG ready, Modbus TCP/RTU supported
Brushless DC motor enables stepless speed regulation
Product Parameters
-
ALT04-SF0-
Electrical Specifications
Power supply V/Ph/Hz 220-240 1N ~ 50 Seasonal space heating energy efficiency class-LWT at 35°C A+++ Seasonal space heating energy efficiency class-LWT at 55°C A+++ Refrigerant-Type/GWP R290/3 Refrigerant-Factory Charge(kg) 0.74 kg Sound pressure level at 1m 33 dB(A) Sound pressure level at 3m 29 dB(A) Water outlet-Heating 25~80 °C Water outlet-Cooling 5~25 °C Water outlet-DHW 25~70 °C -
Mechanical Specifications
Net dimensions(W x H x D) 1100x400x865 mm Net Weight 100 kg
-
-
ALT05-SF0
-
Electrical Specifications
Power supply V/Ph/Hz 220-240 1N ~ 50 Seasonal space heating energy efficiency class-LWT at 35°C A+++ Seasonal space heating energy efficiency class-LWT at 55°C A+++ Refrigerant-Type/GWP R290/3 Refrigerant-Factory Charge(kg) 0.74 kg Sound pressure level at 1m 33 dB(A) Sound pressure level at 3m 29 dB(A) Water outlet-Heating 25~80 °C Water outlet-Cooling 5~25 °C Water outlet-DHW 25~70 °C -
Mechanical Specifications
Net dimensions(W x H x D) 1100 x 865 x 400 mm Net Weight 100 kg
-
-
ALT06-SF0
-
Electrical Specifications
Power supply V/Ph/Hz 220-235 1N~ 50 Seasonal space heating energy efficiency class-LWT at 35°C A+++ Seasonal space heating energy efficiency class-LWT at 55°C A+++ Refrigerant-Type/GWP R290/3 Refrigerant-Factory Charge(kg) 0.74 kg Sound pressure level at 1m 33 dB(A) Sound pressure level at 3m 29 dB(A) Water outlet-Heating 25~80 °C Water outlet-Cooling 5~25 °C Water outlet-DHW 25~70 °C -
Mechanical Specifications
Net dimensions(W x H x D) 1100x400x865 mm Net Weight 103 kg
-
