Residential Batteries

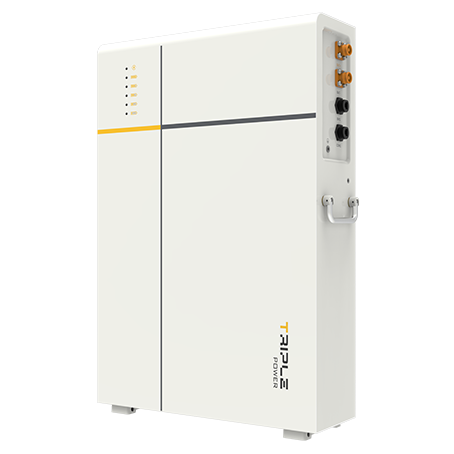

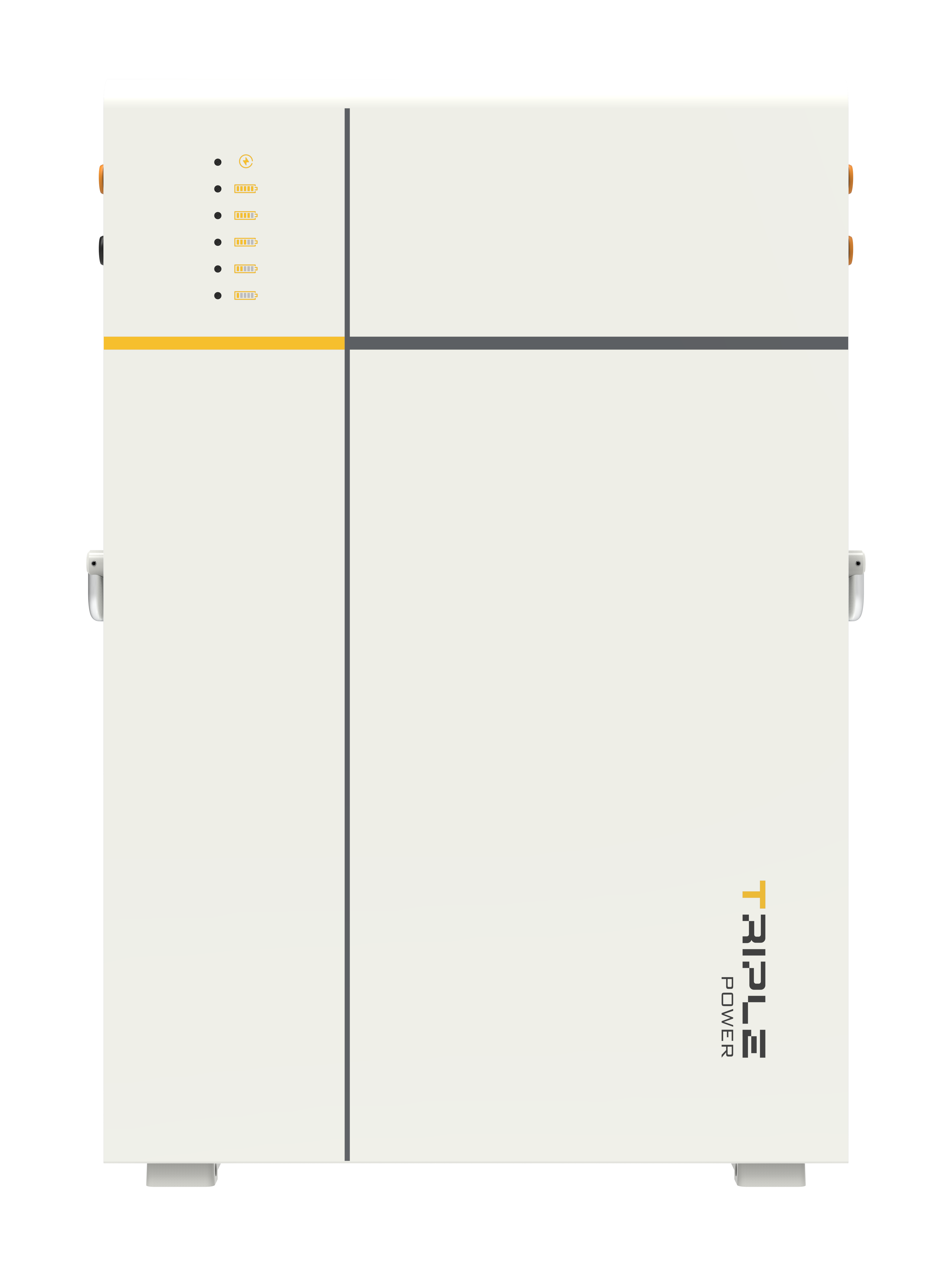

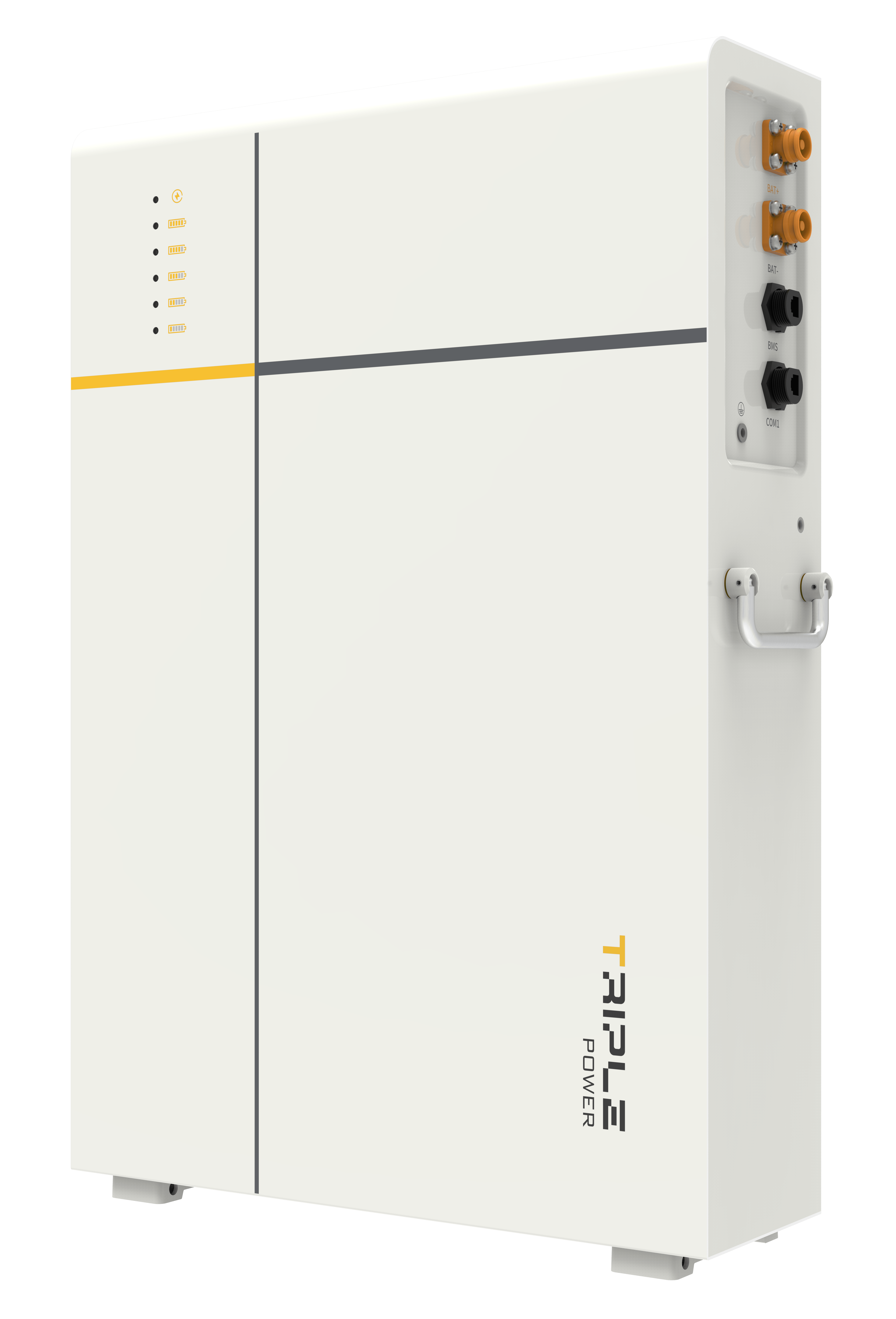

T-BAT-SYS-LV D53

  • 5.3 kWh-85.1 kWh

The SolaX T-BAT-SYS-LV D53 is a next-generation residential energy storage system featuring advanced LFP battery technology. With a wide capacity range from 5.3 to 85.1 kWh and support for up to 16 units in parallel, it offers flexible, scalable energy storage tailored to modern household needs.

Product Advantage

The T-BAT-SYS-LV D53 stands out with its powerful performance, supporting peak discharge currents of 200A and offering a long cycle life of over 6000 times. Its IP65-rated enclosure and high-performance processors ensure reliable operation in various environments. Enhanced by AI-powered management algorithms and remote monitoring capabilities, it delivers intelligent energy control with minimal maintenance.

Contact Us

Assured Reliability

  • LiFePO4 battery cell & high-performance processors

  • IP65 protection degree


Flexible Adaptability

  • Floor or wall mounting optional

  • Modular design, expandable to 16 units in parallel


High Performance

  • Peak discharge current: 200A for 10s

  • Cycle life > 6000 times


Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Al-driven intelligent algorithms for high SOC and accuracy


Product Parameters

  • T-BAT LD53
  • T-BAT LD106
  • T-BAT LD159
  • T-BAT LD212
  • T-BAT LD265
  • T-BAT LD318
  • T-BAT LD371
  • T-BAT LD424
  • T-BAT LD477
  • T-BAT LD530
  • T-BAT LD583
  • T-BAT LD636
  • T-BAT LD689
  • T-BAT LD742
  • T-BAT LD795
  • T-BAT LD848
  • T-BAT LD53
    • SYSTEM DATA
      Number of modules1
      Nominal capacity5.3 kWh
      Max.output current100 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65


  • T-BAT LD106
    • SYSTEM DATA
      Number of modules2
      Nominal capacity10.6 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD159
    • SYSTEM DATA
      Number of modules3
      Nominal capacity15.9 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD212
    • SYSTEM DATA
      Number of modules4
      Nominal capacity21.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD265
    • SYSTEM DATA
      Number of modules5
      Nominal capacity26.6 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD318
    • SYSTEM DATA
      Number of modules6
      Nominal capacity31.9 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD371
    • SYSTEM DATA
      Number of modules7
      Nominal capacity37.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD424
    • SYSTEM DATA
      Number of modules8
      Nominal capacity42.5 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD477
    • SYSTEM DATA
      Number of modules9
      Nominal capacity47.9 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD530
    • SYSTEM DATA
      Number of modules10
      Nominal capacity53.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD583
    • SYSTEM DATA
      Number of modules11
      Nominal capacity58.5 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD636
    • SYSTEM DATA
      Number of modules12
      Nominal capacity63.8 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD689
    • SYSTEM DATA
      Number of modules13
      Nominal capacity69.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD742
    • SYSTEM DATA
      Number of modules14
      Nominal capacity74.5 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD795
    • SYSTEM DATA
      Number of modules15
      Nominal capacity79.8 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD848
    • SYSTEM DATA
      Number of modules16
      Nominal capacity85.1 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65
