C&I ESS
AC Switching Cabinet
-
NEXUS ZERO

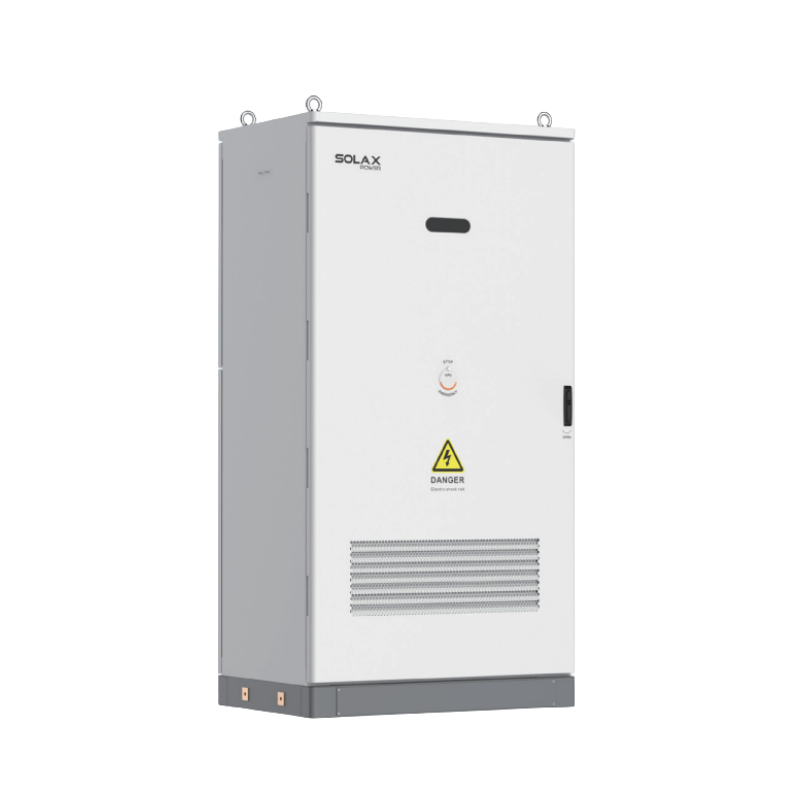

Introducing the Nexus Zero Series AC Switching Cabinet: the intelligent core of your energy ecosystem. Engineered for flawless interoperability, it seamlessly bridges your ESS-AELIO and ESS-TRENE systems to manage the critical transition between on-grid and off-grid power, ensuring uninterrupted energy flow and ultimate operational resilience.
Product Advantage
The SolaX AC Switching Cabinet supports a maximum switching power of up to 1.25 MW and stable operation from -30°C to 55°C. The cabinet also supports diesel generator connection and reliable performance at altitudes up to 3,000 meters without derating.
Intelligent Operation
Seamless switching between grid and off-grid
EMS 1000 PRO Inside: Seamlessly integrated, intelligent management of PV, ESS, and loads for optimal energy performance
Supports a maximum switching power of up to 1.25MW
Safer and Reliable
Load-friendly design, protects equipment from unstable grid damage
Supports Type II surge protection
Supports water ingress alerts, over-temperature warnings, and door lock status feedback
Environmental Adaptability
IP55 protection rating, suitable for both indoor and outdoor use
Supports operation in environments ranging from -30°C to 55°C
Reliable operation at 3000 meters without derating
C5-M corrosion protection standards for reliable performance in the harshest environments
Versatile Applications
Supports connection to diesel generators to ensure stable energy supply
Intelligent operation, supports multiple operation modes
Supports building on-grid/off-grid, solar-storage microgrid, and solar-storage-diesel microgrid solutions
Product Parameters
-
ZERO-125-
SYSTEM PARAMETERS
Rated AC voltage 3 / N / PE ,230 / 400 V
3 / N / PE ,220 / 380 V
Rated AC current@230V 181.2 A Rated AC current@220V 189.4 A Ingress protection IP55 Dimension (W × H × D) 900 x 1600 x 800 mm Weight (kg) 300 kg
-
-
ZERO-250
-
SYSTEM PARAMETERS
Rated AC voltage 3 / N / PE ,230 / 400 V
3 / N / PE ,220 / 380 V
Rated AC current@230V 362.3 A Rated AC current@220V 378.8 A Ingress protection IP55 Dimension (W × H × D) 900 x 1600 x 800 mm Weight (kg) 330 kg
-
-
ZERO-500
-
SYSTEM PARAMETERS
Rated AC voltage 3 / N / PE ,230 / 400 V
3 / N / PE ,220 / 380 V
Rated AC current@230V 724.6 A Rated AC current@220V 757.6 A Ingress protection IP55 Dimension (W × H × D) 1200 x 2300 x 800 mm Weight (kg) 660 kg
-
-
ZERO-750
-
SYSTEM PARAMETERS
Rated AC voltage 3 / N / PE ,230 / 400 V
3 / N / PE ,220 / 380 V
Rated AC current@230V 1087 A Rated AC current@220V 1136 A Ingress protection IP55 Dimension (W × H × D) 1200 x 2300 x 800 mm Weight (kg) 730 kg
-
-
ZERO-1250
-
SYSTEM PARAMETERS
Rated AC voltage 3 / N / PE ,230 / 400 V
3 / N / PE ,220 / 380 V
Rated AC current@230V 1811.6 A Rated AC current@220V 1893.9 A Ingress protection IP55 Dimension (W × H × D) 1900 x 2300 x 1200 mm Weight (kg) 1500 kg
-
