X1-Matebox G2

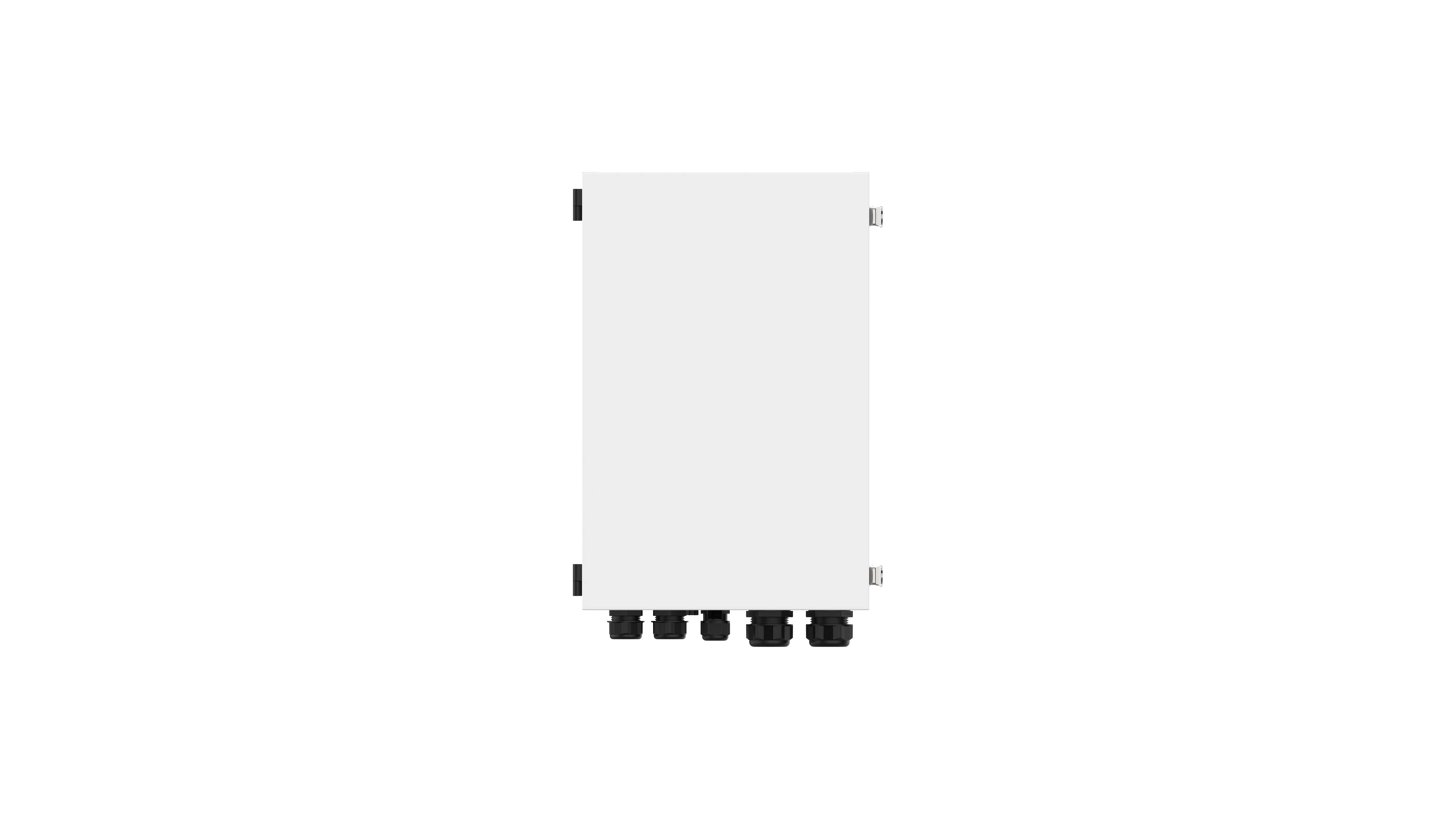

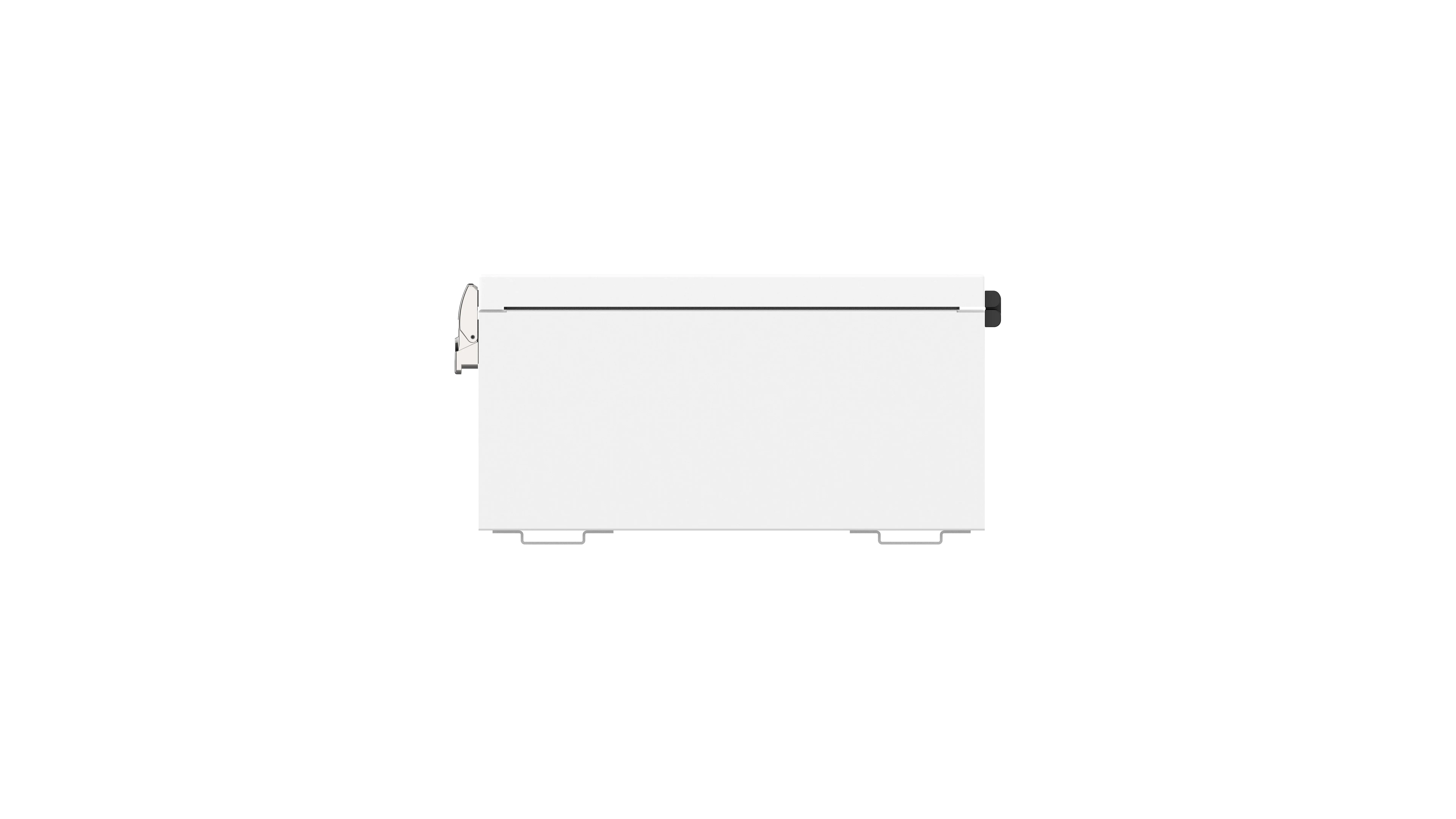

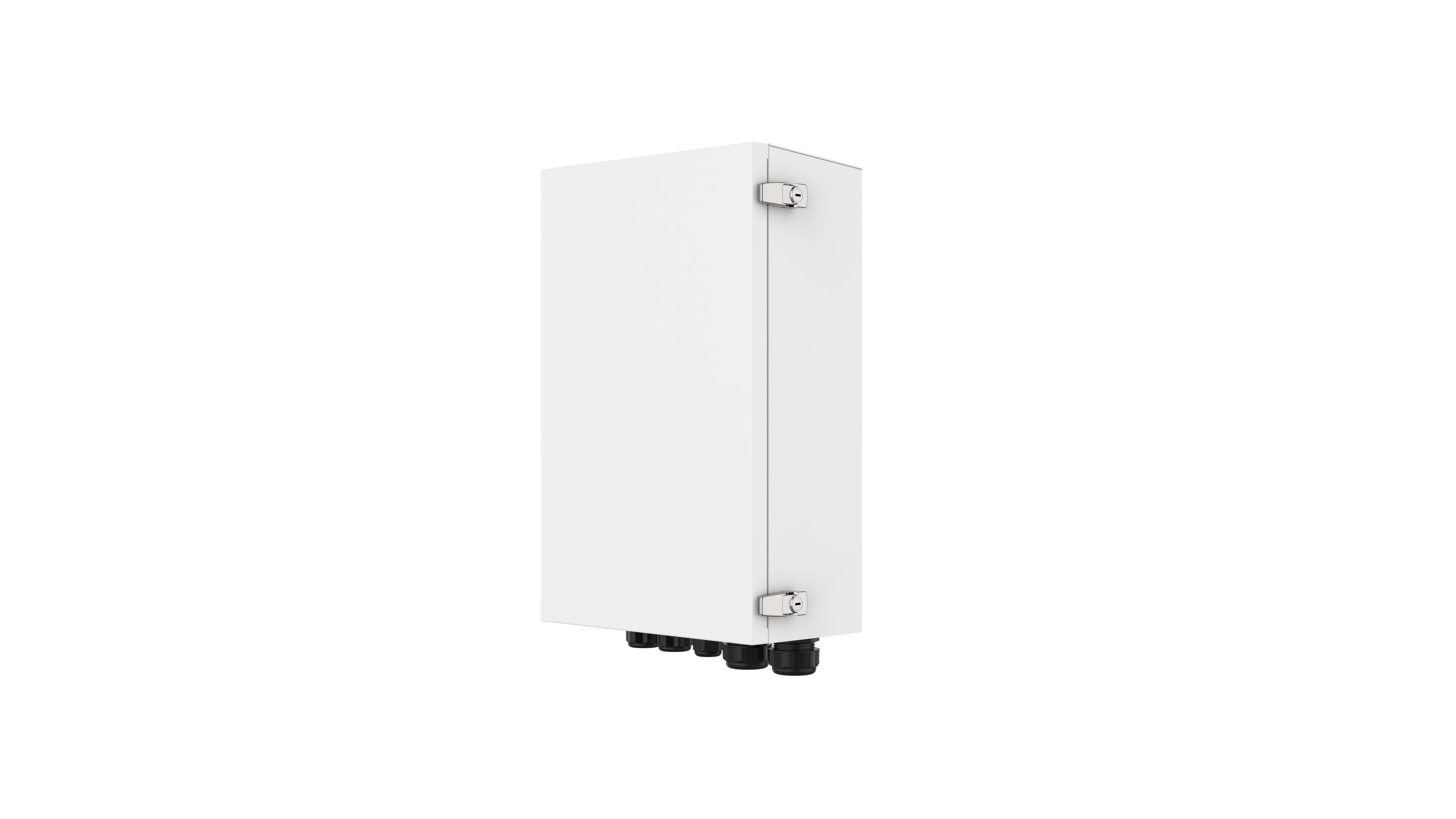

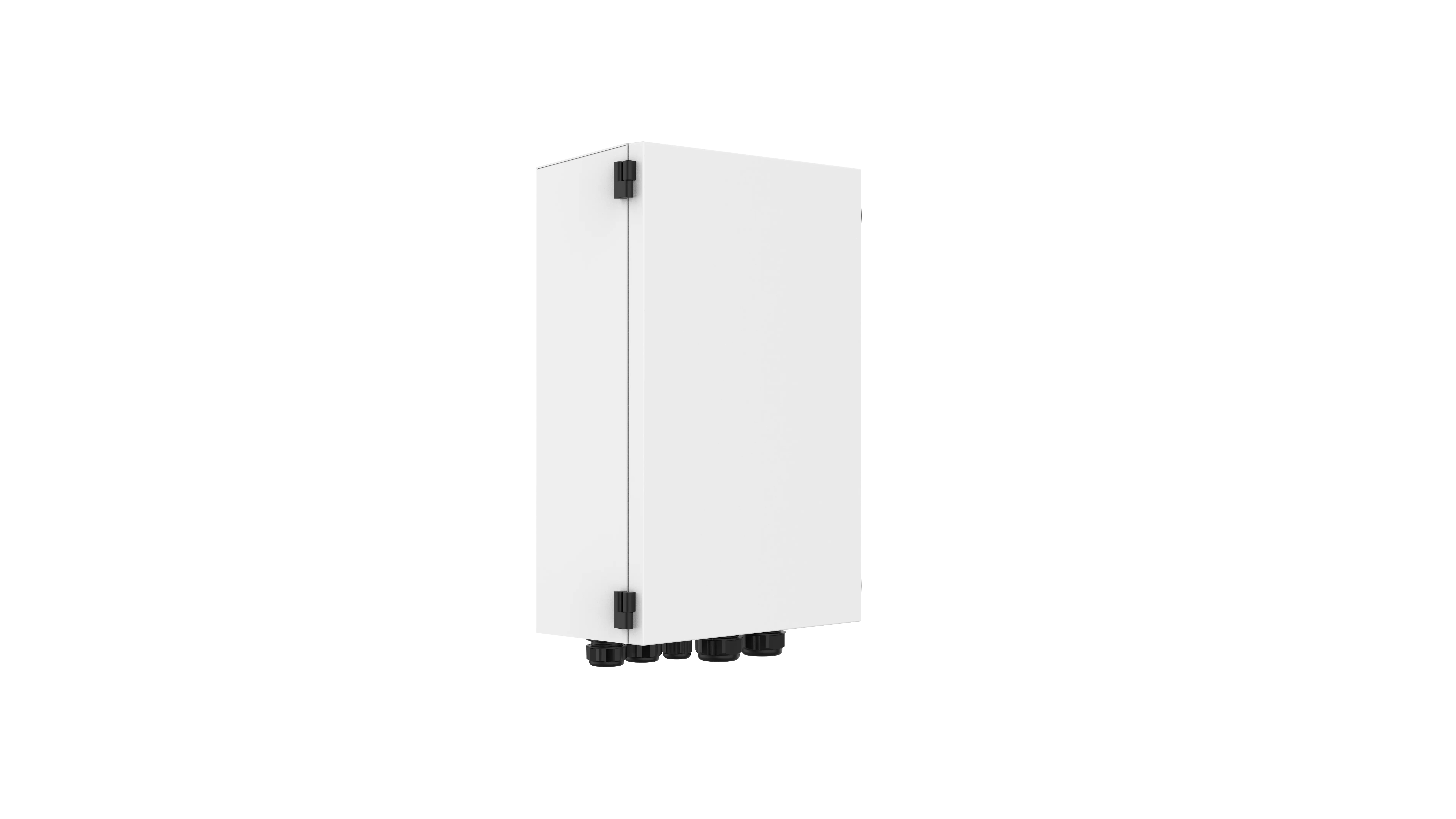

X3-Matebox G2
The X-ESS G4 includes pre-sorted cables in the Matebox, reducing the chance of wiring mistakes.
The X-ESS G4 features a modular design, making installation easier and more efficient.
With pre-sorted cables and a simplified wiring process, the X-ESS G4 saves time and effort during installation.
SolaX Matebox G2 gets rid of complicated wiring work by laying all the cable in Matebox. All you need to do is just to connect all the cable which are already well-sorted in the Matebox, that effectively helps to save time and money.Additionally, pairing with our X3-IES system, you can instantly experience whole-house smart distribution.
| Parameter | X1-Matebox G2 |
| Rated Voltage, Frequency (On-Grid) | 220 / 230 / 240 Vac, 50 / 60 Hz |
| Max. Apparent On-Grid Input/Output Power | 8000 VA |
| Max. On-Grid Current | 36.4 A |
| Rated Voltage, Frequency (Off-Grid) | 230 Vac, 50 / 60 Hz |
| Max. Power (Off-Grid) | 8000 VA |
| Rated Current (Off-Grid) | 36.4 A |
| Rated Grid Voltage, Frequency (Utility) | 220 / 230 / 240 Vac, 50 / 60 Hz |
| Max. Input Current (Utility) | 63 A (100 A for England) |
| Rated Voltage, Frequency (Load) | 220 / 230 / 240 Vac, 50 / 60 Hz |
| Max. Current (Load) | 63 A (100 A for England) |
| Degree of Protection | IP65 |
| Protection Class | Class I |
| Operating Temperature Range | -25 ~ 60°C (Derating above +45°C) |
| Storage Temperature | -40 ~ 70°C |
| Relative Humidity | 0 ~ 100% RH (Condensing) |
| Altitude | < 3000 m |
| Overvoltage Category | III (AC) |
| Cooling Concept | Natural Cooling |
| Dimensions (L × W × H) | 549 × 360 × 192 mm |
| Net Weight | 11 kg |
| Parameter | X3-Matebox G2 |
| Rated Voltage, Frequency (On-Grid) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Apparent On-Grid Input/Output Power | 16500 VA |
| Max. On-Grid Current | 32 A |
| Rated Voltage, Frequency (Off-Grid) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Power (Off-Grid) | 15000 VA |
| Rated Current (Off-Grid) | 25 A |
| Peak Apparent Power | 30000 VA |
| Rated Grid Voltage, Frequency (Utility) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Input Current (Utility) | 63 A |
| Rated Voltage, Frequency (Load) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Current (Load) | 63 A |
| Degree of Protection | IP65 |
| Protection Class | Class I |
| Operating Temperature Range | -25 ~ 60°C (Derating above +45°C) |
| Storage Temperature | -40 ~ 70°C |
| Relative Humidity | 0 ~ 100% RH (Condensing) |
| Altitude | < 3000 m |
| Overvoltage Category | III (AC) |
| Cooling Concept | Natural Cooling |
| Dimensions (L × W × H) | 549 × 360 × 192 mm |
| Net Weight | 13.5 kg |
