Energy Storage System

ESS-AELIO
ESS-AELIO

ESS-AELIO

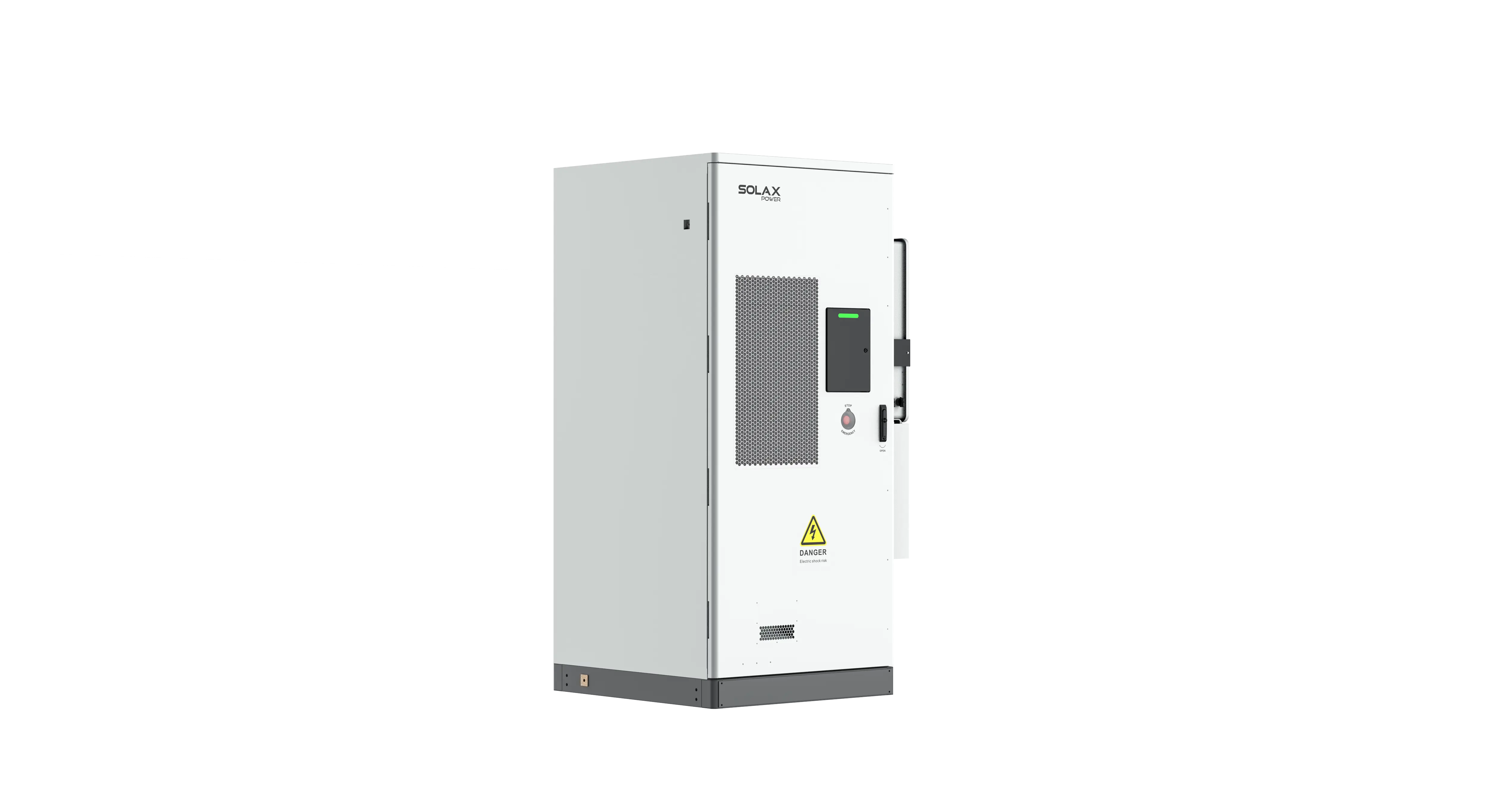

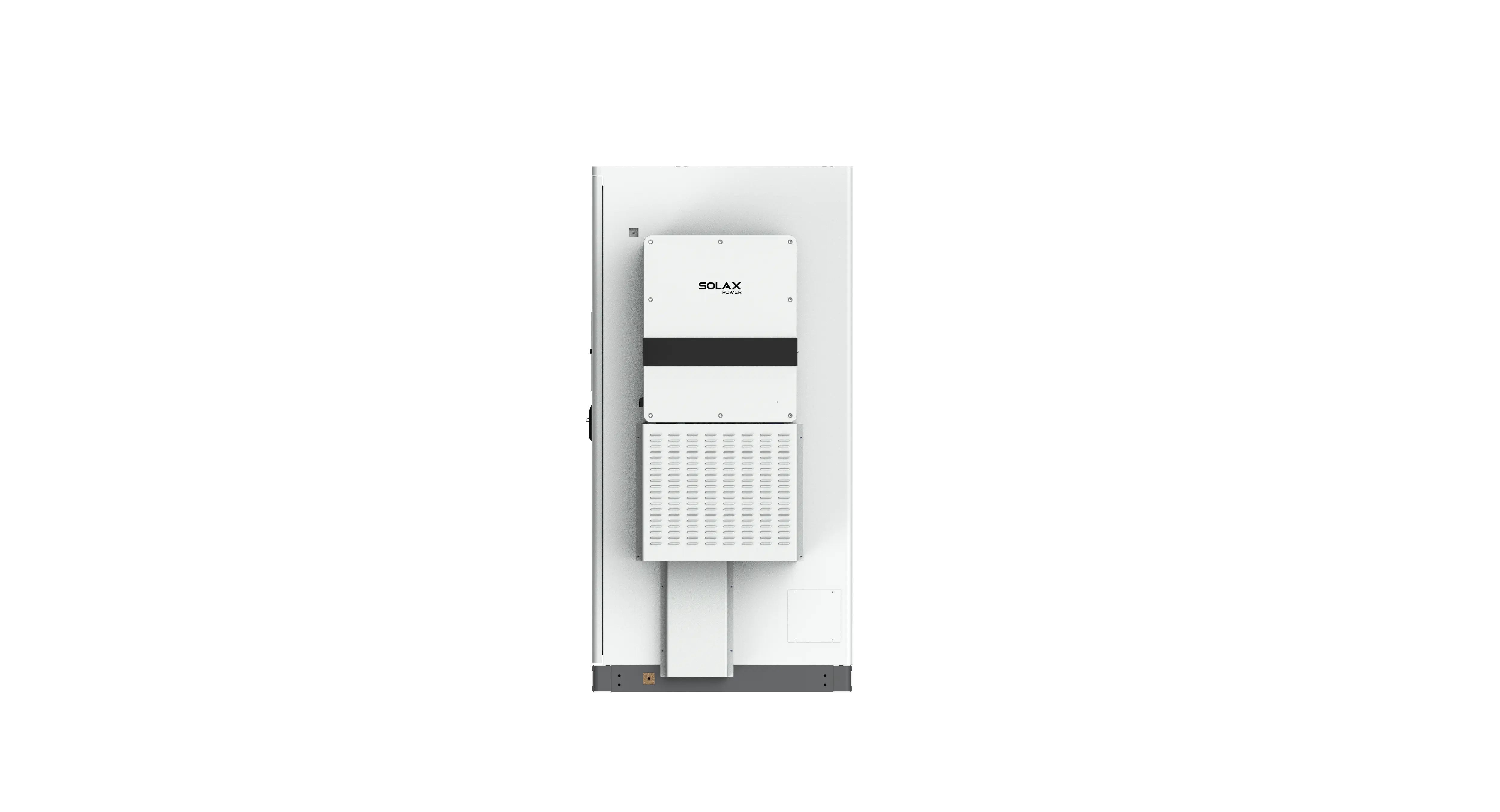

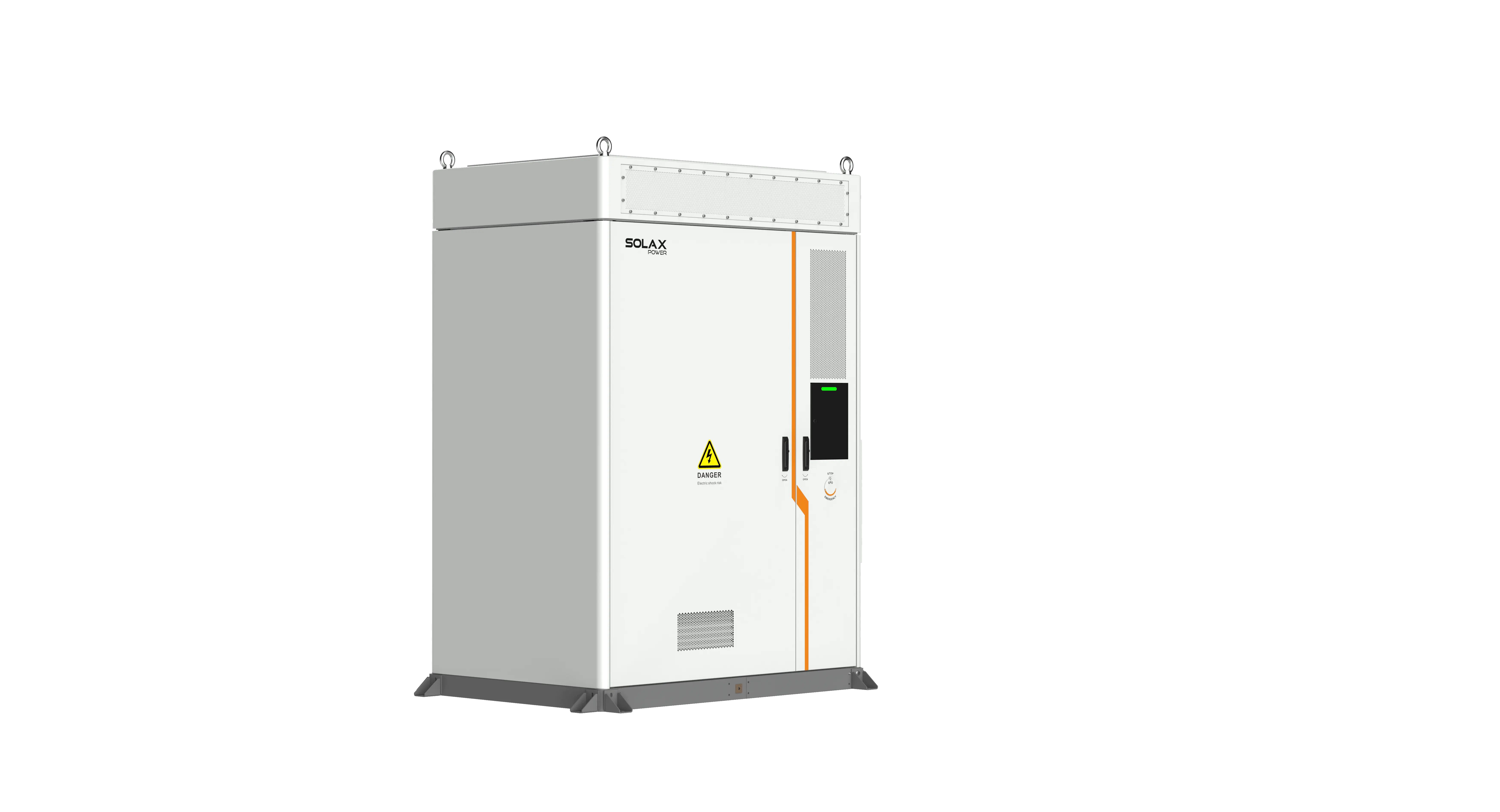

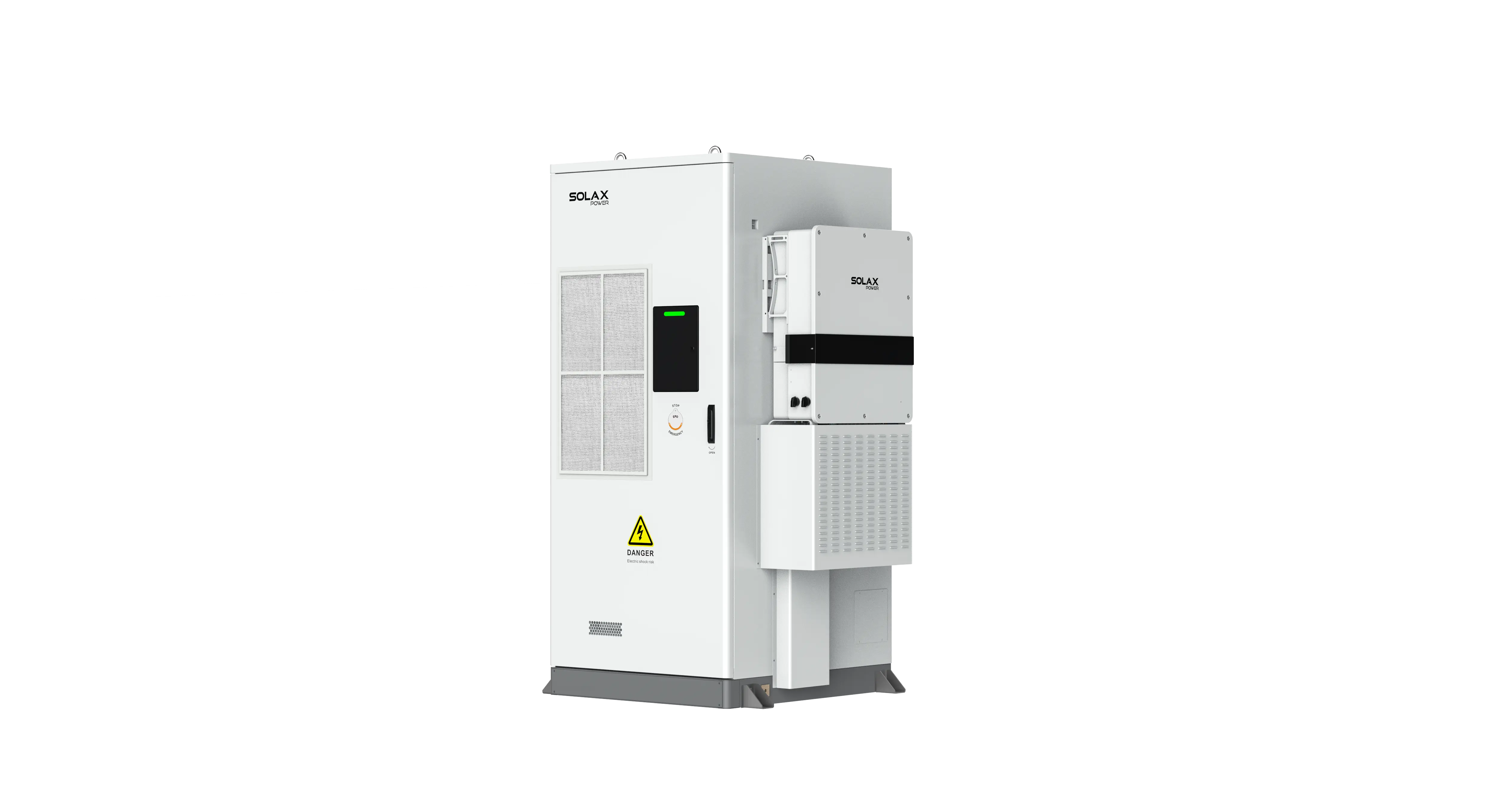

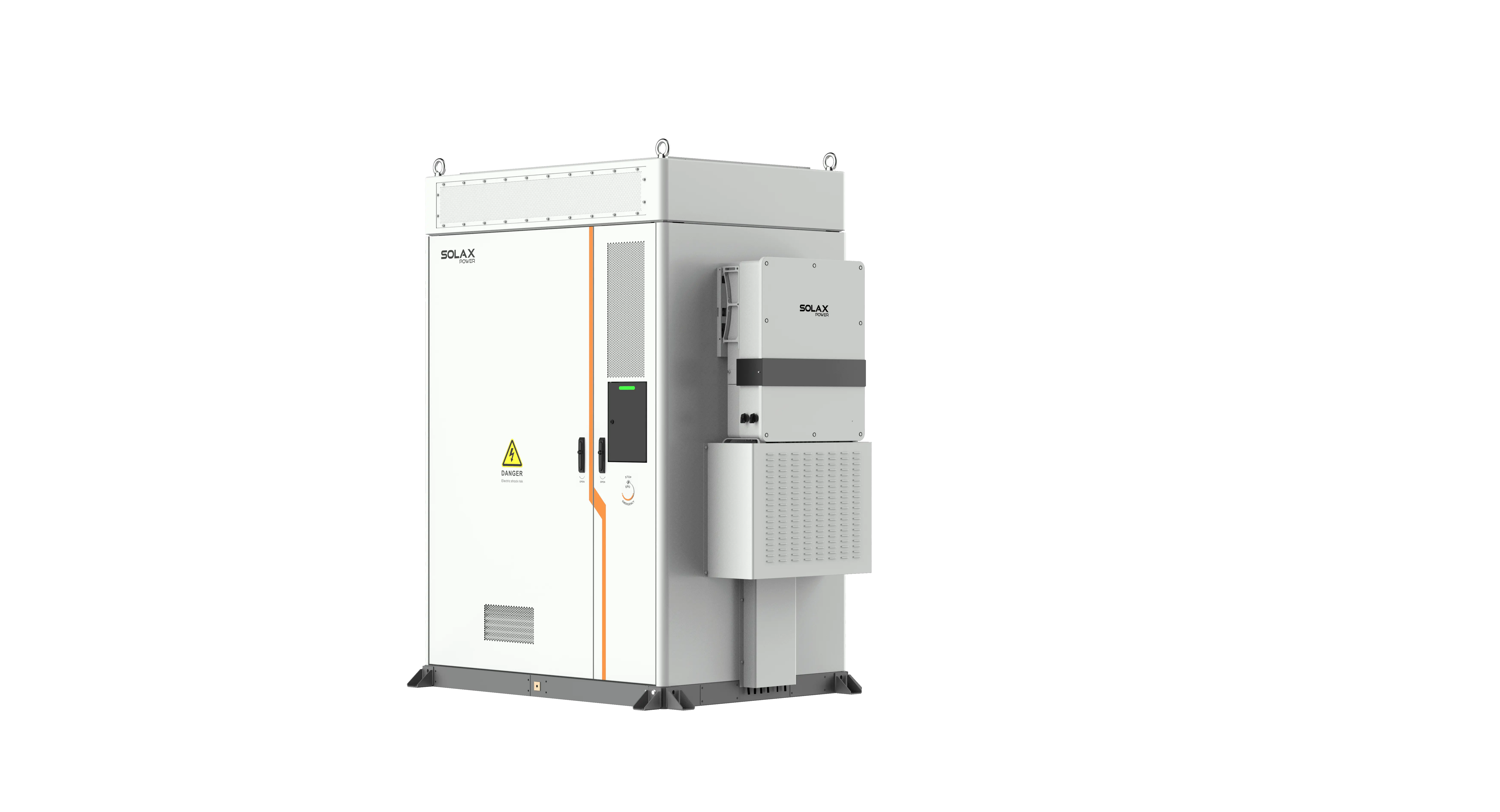

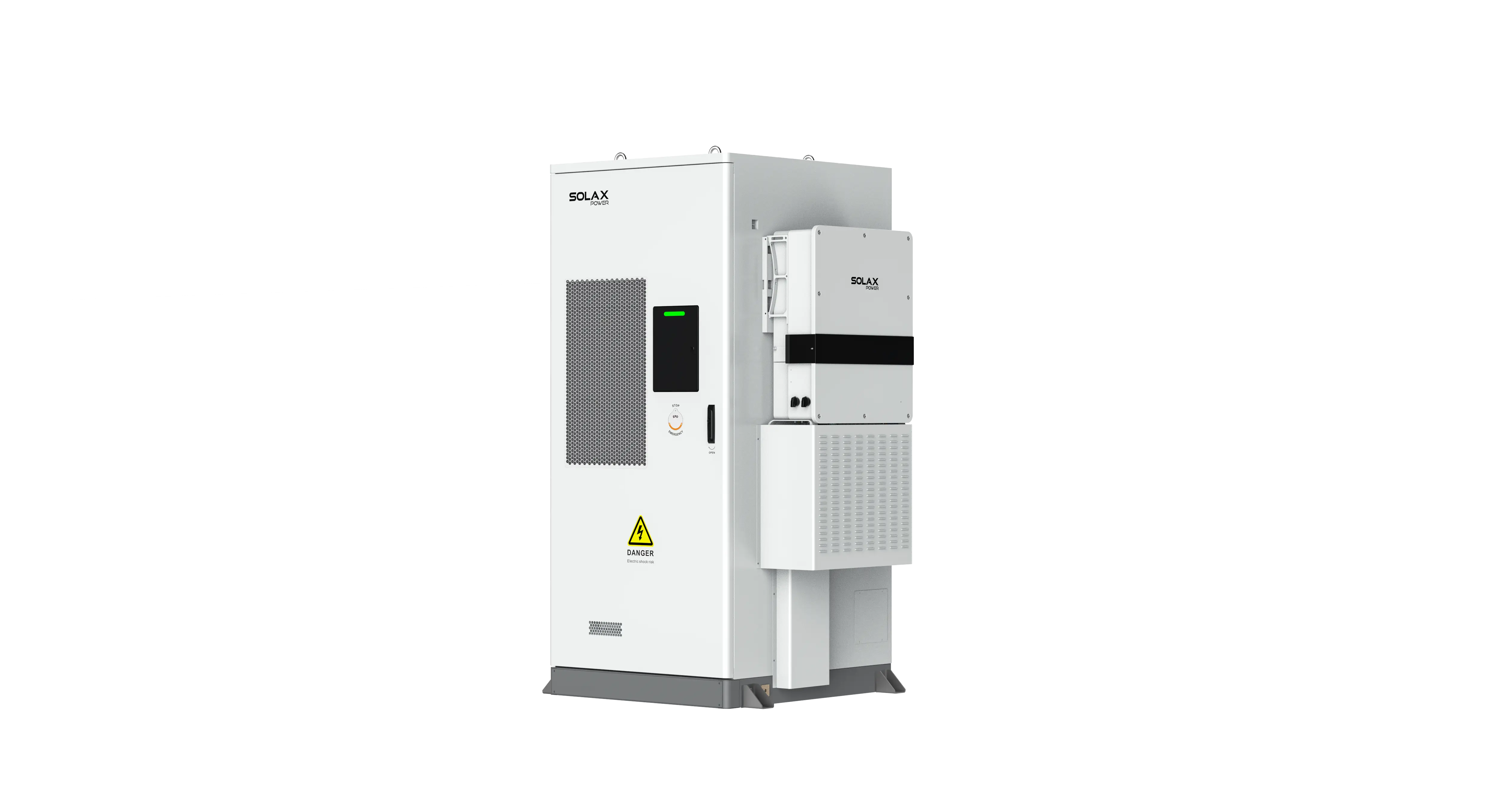

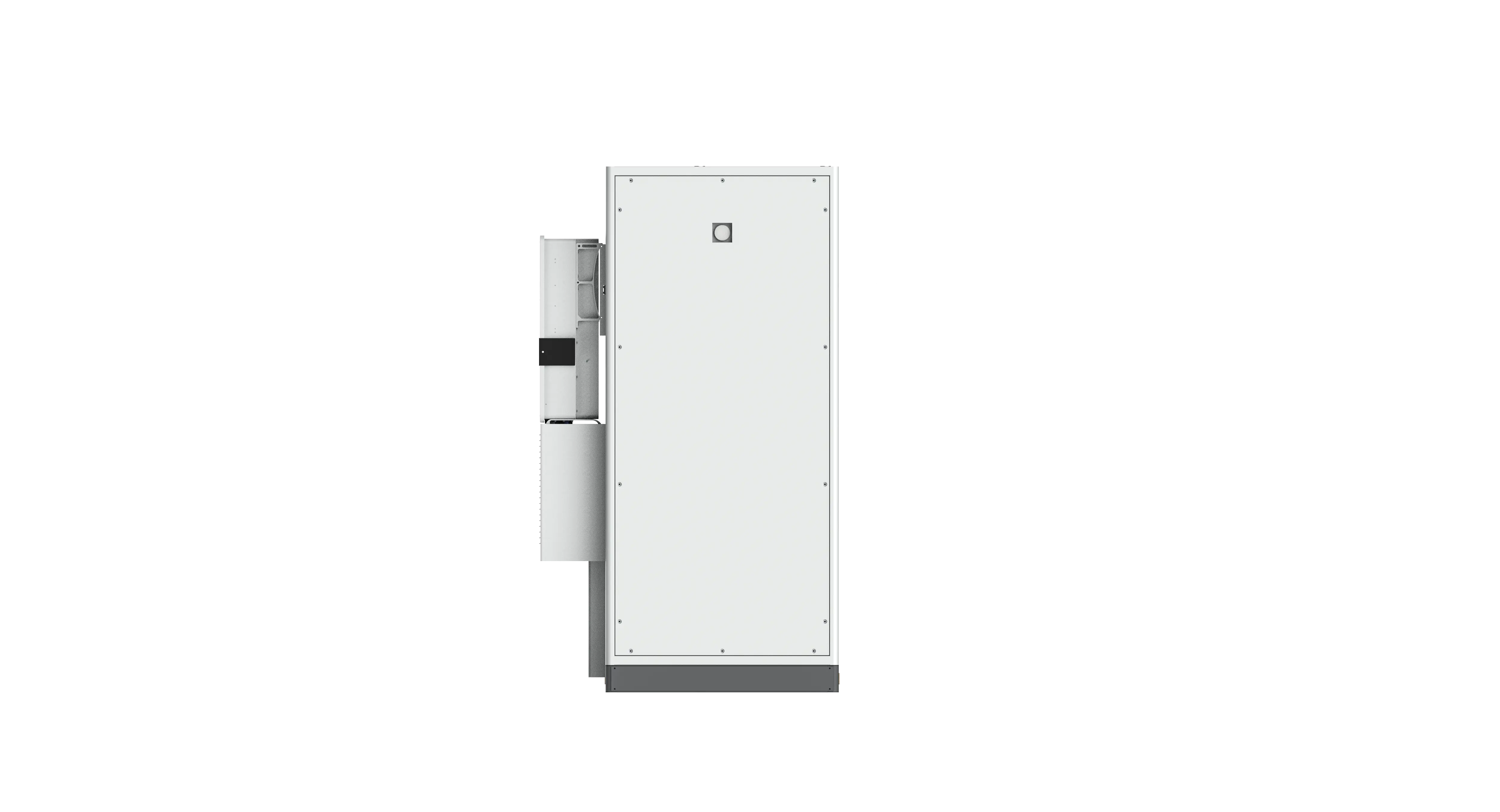

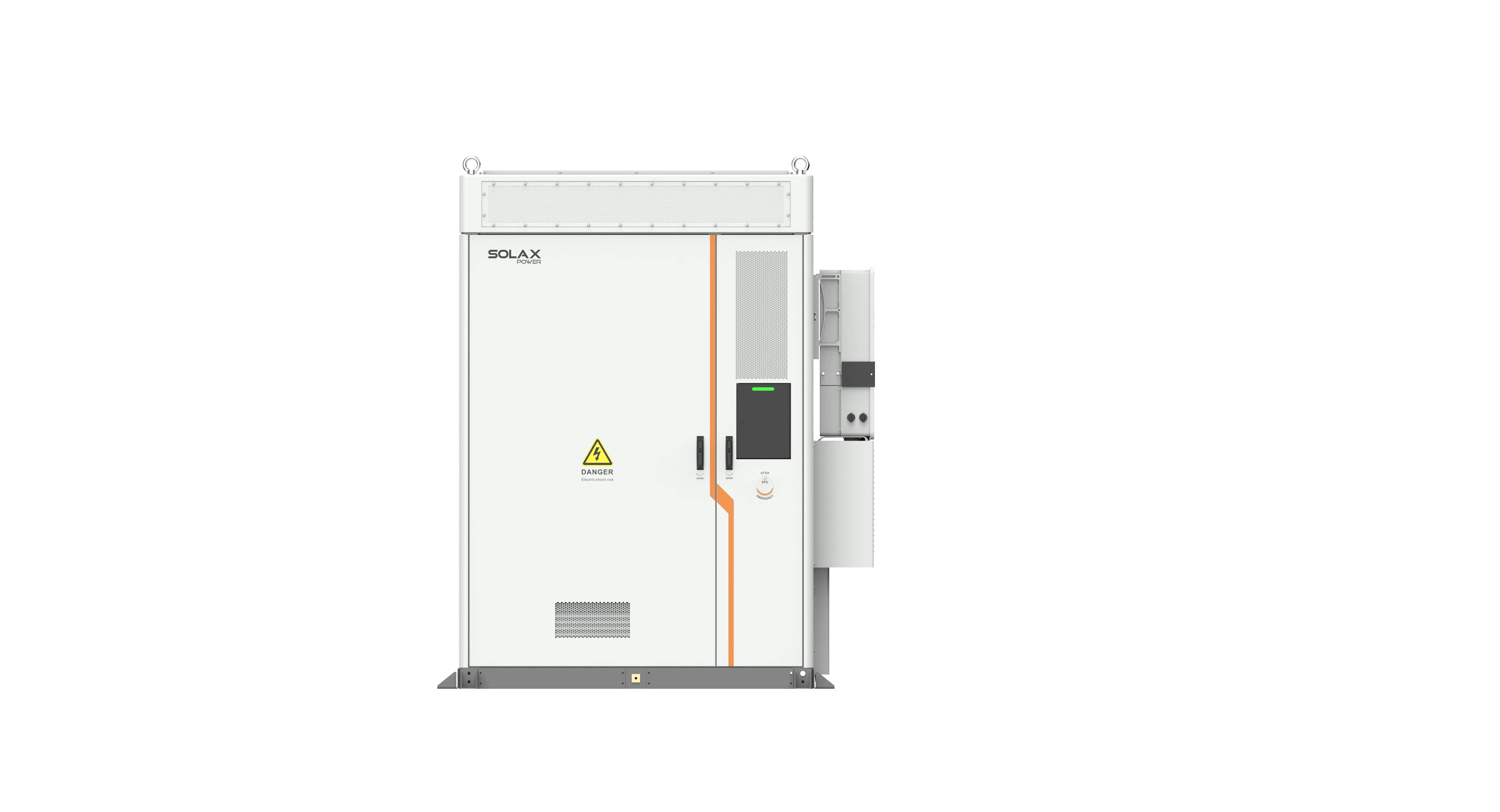

Hybrid C&I ESS Cabinet  | P50B100 | P50B200 |  P60B100 | P60B200

ROBUST


  • Support both on-grid and off-grid operation

  • Robust back-up ability, switch over time <10ms, up to 150% EPS output for 10s

  • Support unbalanced loads on three phases




INTELLIGENT


  • AI ready, forecasting solar generation and load consumption, smart energy management strategy

  • Support smart scene function, intelligent loads management(e.g., Heat pump,EV charger)*

  • VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )

  • Support Micro-grid and a variety of scenarios

  • Support 7×24h remote O&M and schedule deployment

  • Support wireless meter solution



SAFE


  • Four-level fire safety protection

  • IP66 protection for Inverter and IP54 for cabinet

  • AFCI optional

  • AC&DC SPD type II, always guarding the inverter

  • Smart IV Curve scan for early panel diagnosis




ECONOMIC


  • Maximum 200% PV oversized input

  • Maximum 40A input current per MPPT, support high power solar panel

  • Global MPP SCAN boost solar energy harvest Advanced LFP battery, single cabinet with up to 200kWh, expandable to MWh



Why ESS-AELIO

Aelio series is a highly integrated, all-in-one, C&I Hybrid energy storage cabinet with multiple application scenarios. It has outstanding advantages such as intelligent charge and discharge management, safety and reliability, and simple operation and maintenance.

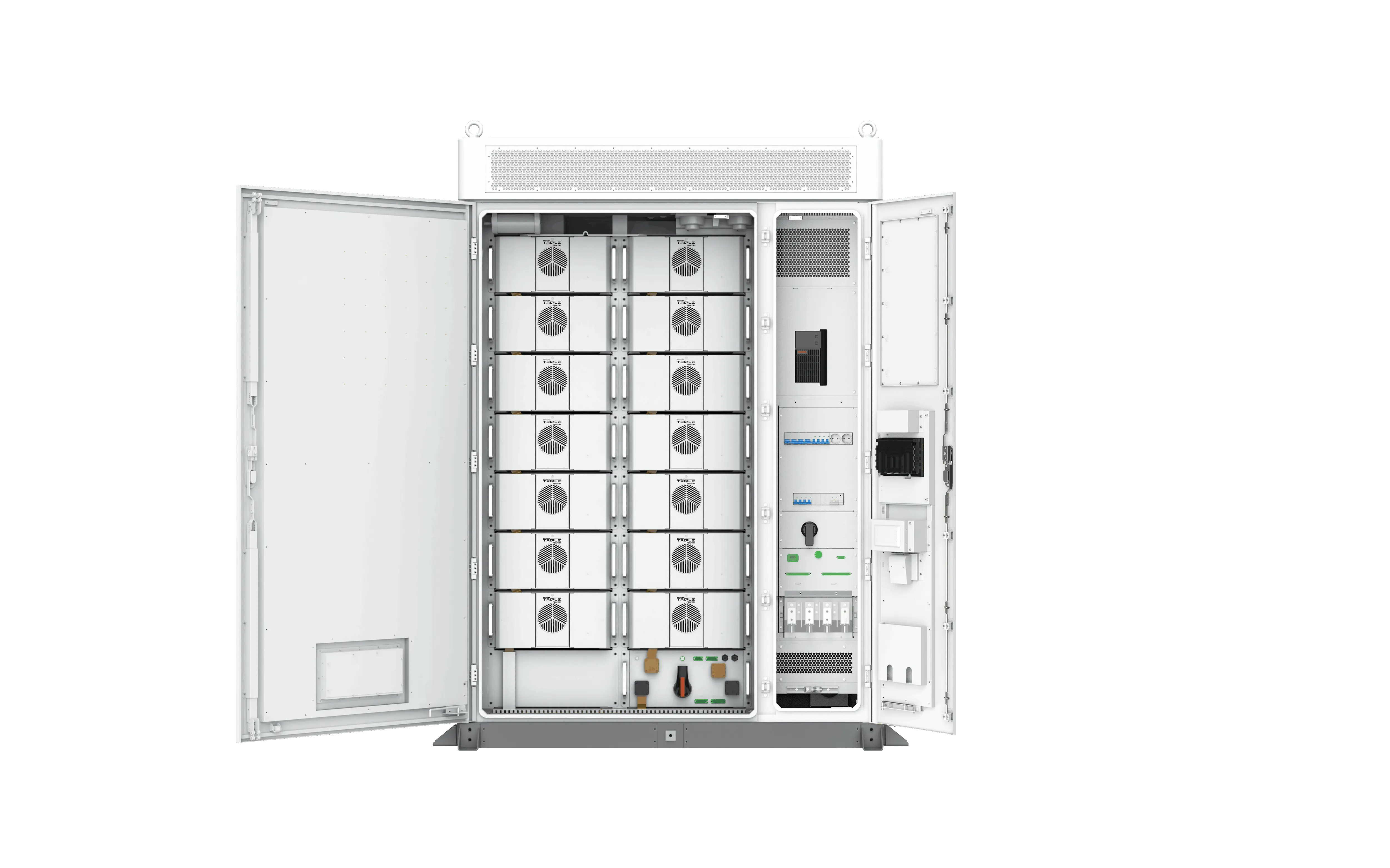

First of all, Aelio cabinet uses high-density, high-safety, and high-performance LFP batteries. There are two models with capacity of 100kWh and 200kWh. When used in a single cabinet or multiple cabinets, it can charge and discharge stably according to the set working modes at different time periods, and the large-capacity battery cell of 280Ah also reduces the intial cost of the system.


Secondly, the cabinet is equipped with a self-developed Energy Management System (EMS) that can monitor the working status and abnormal alerts of each battery cell, PCS, and fire protection system in real-time. The local data storage capability allows for data analysis and verification for up to 1 year. The advanced EMS system also has leading advantages in intelligent control of different smart operation strategies, autonomous scheduling based on local electricity prices, and comprehensive management of photovoltaic, energy storage systems, EV charging and generators at power plant level. These features improve the overall system efficiency and shorten the investment return period.


In addition, the cabinet also has multiple safety protection measures. It has built-in protection functions such as overvoltage, overcurrent, and overtemperature. It is also equipped with fireproof materials and 4 levels of fire protection system, which can promptly detect and respond to potential fire risks, effectively control the spread of fires and reduce the risk of safety accidents.


The cabinet is suitable for various C&I PV&ESS scenarios, including peak shaving, demand response, backup mode, photovoltaic and energy storage integration, and stable load consumption curves. It also supports applications such as virtual power plants(VPP) and frequency regulation






P50B100
P50B200
P60B100
P60B200
AttributeAELIO-P50B100
Rated AC output power [kW]50
Rated AC output current [A]72.2
Max. AC output apparent power   [kVA]55
Max. AC output current [A]83.6
Nominal grid voltage [V]3P4W, 400/230, 380/220
Nominal grid frequency [Hz]50/60
Adjustable power factor range1 (0.8 Leading ~ 0.8 Lagging)
THDi (Rated power) [%]< 3
Battery typeLFP / 280Ah
Rated battery capacity [kWh]100
Rated battery voltage [V]358.4
Battery voltage range [V]280 ~ 408.8
Discharge depth [%]90
Rated charge/discharge current   [A]140
Max charge/discharge current   [A]160 (80 × 2)
Max. PV input power [kW]100
Max. PV input voltage [V]1000
Start output voltage [V]200
Rated input voltage [V]650
MPPT voltage range [V]160 ~ 950
No. of MPP trackers / Strings   per MPP tracker5 (2 per MPPT)
Max. input current [A]40
Max. input short circuit   current [A]50
Dimensions(with Inverter)   (W×H×D) [mm]1310 × 2300 × 1140
Dimensions (without Inverter)   (W×H×D) [mm]1020 × 2300 × 1150
Weight (with Inverter) [kg]1600
Weight (without Inverter) [kg]1500
Operating ambient temperature   range [°C]-30 ~ 55
Relative humidity   (Non-condensing) [%]0 ~ 95
Max. operating altitude [m]3000
Cooling conceptSmart air cooling
Ingress protectionCabinet: IP55; Inverter: IP66
Fire protectionAerosol(Optional:Novec1230 ) / Water
TopologyNon-isolated
StandardIIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3





AttributeAELIO-P50B200
Rated AC output power [kW]50
Rated AC output current [A]72.2
Max. AC output apparent power   [kVA]55
Max. AC output current [A]83.6
Nominal grid voltage [V]3P4W, 400/230, 380/220
Nominal grid frequency [Hz]50/60
Adjustable power factor range1 (0.8 Leading ~ 0.8 Lagging)
THDi (Rated power) [%]< 3
Battery typeLFP / 280Ah
Rated battery capacity [kWh]200
Rated battery voltage [V]716.8
Battery voltage range [V]560 ~ 817.6
Discharge depth [%]90
Rated charge/discharge current   [A]140
Max charge/discharge current   [A]160 (80 × 2)
Max. PV input power [kW]100
Max. PV input voltage [V]1000
Start output voltage [V]200
Rated input voltage [V]650
MPPT voltage range [V]160 ~ 950
No. of MPP trackers / Strings   per MPP tracker5 (2 per MPPT)
Max. input current [A]40
Max. input short circuit   current [A]50
Dimensions(with Inverter)   (W×H×D) [mm]2070 × 2420 × 1200
Dimensions (without Inverter)   (W×H×D) [mm]1680 × 2420 × 1200
Weight (with Inverter) [kg]2800
Weight (without Inverter) [kg]2700
Operating ambient temperature   range [°C]-30 ~ 55
Relative humidity   (Non-condensing) [%]0 ~ 95
Max. operating altitude [m]3000
Cooling conceptSmart air cooling
Ingress protectionCabinet: IP55; Inverter: IP66
Fire protectionAerosol(Optional:Novec1230 ) / Water
TopologyNon-isolated
StandardIIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3





AttributeAELIO-P60B100
Rated AC output power [kW]60
Rated AC output current [A]86.6
Max. AC output apparent power   [kVA]66
Max. AC output current [A]100.3
Nominal grid voltage [V]3P4W, 400/230, 380/220
Nominal grid frequency [Hz]50/60
Adjustable power factor range1 (0.8 Leading ~ 0.8 Lagging)
THDi (Rated power) [%]< 3
Battery typeLFP / 280Ah
Rated battery capacity [kWh]100
Rated battery voltage [V]358.4
Battery voltage range [V]280 ~ 408.8
Discharge depth [%]90
Rated charge/discharge current   [A]140
Max charge/discharge current   [A]160 (80 × 2)
Max. PV input power [kW]120
Max. PV input voltage [V]1000
Start output voltage [V]200
Rated input voltage [V]650
MPPT voltage range [V]160 ~ 950
No. of MPP trackers / Strings   per MPP tracker6 (2 per MPPT)
Max. input current [A]40
Max. input short circuit   current [A]50
Dimensions(with Inverter)   (W×H×D) [mm]1310 × 2300 × 1140
Dimensions (without Inverter)   (W×H×D) [mm]1020 × 2300 × 1150
Weight (with Inverter) [kg]1600
Weight (without Inverter) [kg]1500
Operating ambient temperature   range [°C]-30 ~ 55
Relative humidity   (Non-condensing) [%]0 ~ 95
Max. operating altitude [m]3000
Cooling conceptSmart air cooling
Ingress protectionCabinet: IP55; Inverter: IP66
Fire protectionAerosol(Optional:Novec1230 ) / Water
TopologyNon-isolated
StandardIIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3





AttributeAELIO-P60B200
Rated AC output power [kW]60
Rated AC output current [A]86.6
Max. AC output apparent power   [kVA]66
Max. AC output current [A]100.3
Nominal grid voltage [V]3P4W, 400/230, 380/220
Nominal grid frequency [Hz]50/60
Adjustable power factor range1 (0.8 Leading ~ 0.8 Lagging)
THDi (Rated power) [%]< 3
Battery typeLFP / 280Ah
Rated battery capacity [kWh]200
Rated battery voltage [V]716.8
Battery voltage range [V]560 ~ 817.6
Discharge depth [%]90
Rated charge/discharge current   [A]140
Max charge/discharge current   [A]160 (80 × 2)
Max. PV input power [kW]120
Max. PV input voltage [V]1000
Start output voltage [V]200
Rated input voltage [V]650
MPPT voltage range [V]160 ~ 950
No. of MPP trackers / Strings   per MPP tracker6 (2 per MPPT)
Max. input current [A]40
Max. input short circuit   current [A]50
Dimensions(with Inverter)   (W×H×D) [mm]2070 × 2420 × 1200
Dimensions (without Inverter)   (W×H×D) [mm]1680 × 2420 × 1200
Weight (with Inverter) [kg]2800
Weight (without Inverter) [kg]2700
Operating ambient temperature   range [°C]-30 ~ 55
Relative humidity   (Non-condensing) [%]0 ~ 95
Max. operating altitude [m]3000
Cooling conceptSmart air cooling
Ingress protectionCabinet: IP55; Inverter: IP66
Fire protectionAerosol(Optional:Novec1230 ) / Water
TopologyNon-isolated
StandardIIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3
